Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | Hunan, China |
|---|---|
| Brand Name: | VIBO |
| Certification: | ASTM |
| Model Number: | CB40 |
| Minimum Order Quantity: | 200 Kilogram/Kilograms |
| Price: | $5.00 - $10.00 / Kilogram |
| Packaging Details: | STANDARD PACKING IN STURDY WOODEN CASES , IN CARDBOARD CARTONS (AS YOUR REQUIREMENT) |
| Supply Ability: | 200000 Kilogram/Kilograms per Month |
| Warranty: | 1 YEAR | Applicable Industries: | Garment Shops |
|---|---|---|---|
| Local Service Location: | None | Showroom Location: | Indonesia, Thailand, Chile, Australia |
| Type: | Chocky Bar | Machine Type: | Excavator,Bucket |
| Material: | High Chromium | Processing Type: | Casting |
| Use: | Ore Mining,Earthmovig,Coal Minning | Hardness: | 63HRC |
| Color: | Black | Density: | 7.8 |
| Size: | 240*40*23mm | ||
| High Light: | 40mm Mining chocky bar,240mm Mining chocky bar,63HRC Mining chocky bar |
||

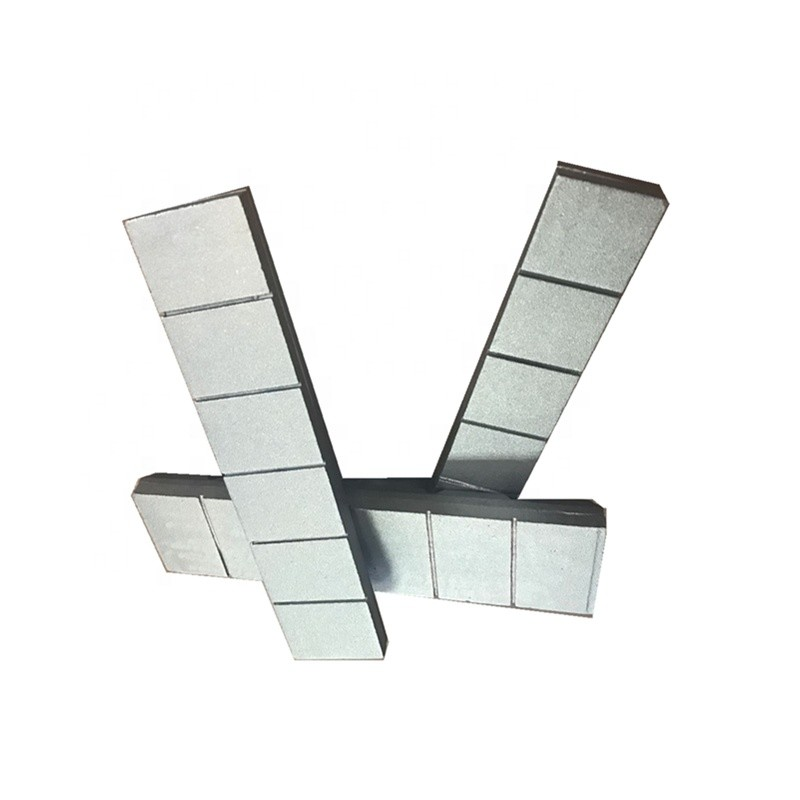

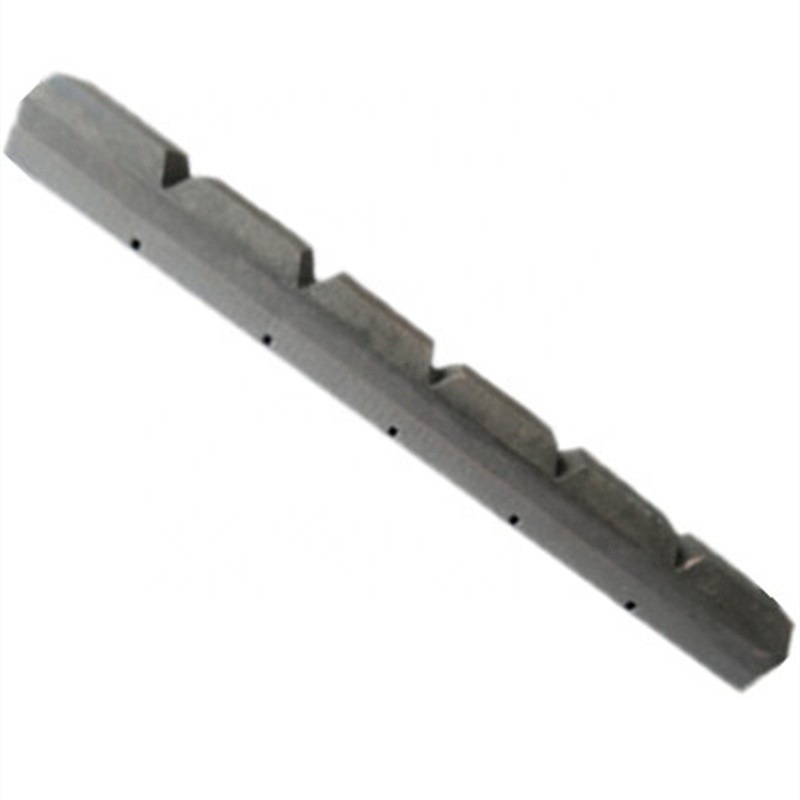

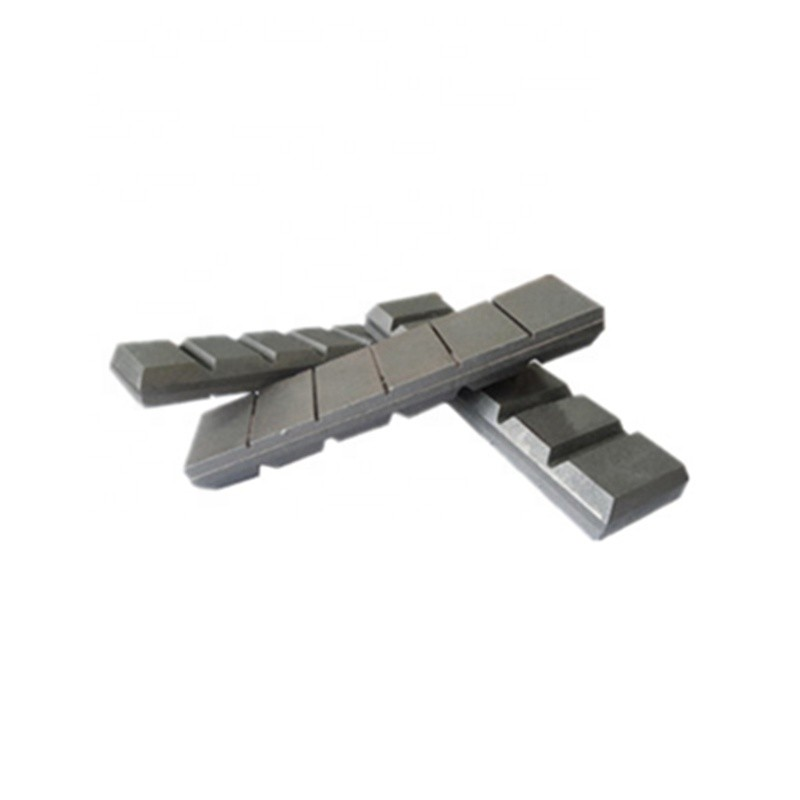

Width 40mm Length 240mm 63HRC Bent Mining Chocky Bar
| Product Description |
Description of Chocky Bars
1. product name: Chocky Bars
2. introduction: The unique formable design of wear blocks are available in various lengths,grades and sizes and can also be customized as per the clients specific need.
3. application: wide and varous, ranging from wear protection on buckets excavators and draglines machines, or for hammer tips for re-cycling industry,or chute linings and rock box edges.
4. specification: The standard is 23mm, length is 240mm, width could be from 25mm from 150mm. We also produce according to your special requests
others: Chocky Bars are easy to use and install. They can be bent, cut and formed to suit different surfaces.
Advantage:
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| CB25A | A | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB25B | B | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB40A | A | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB40B | B | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB50A | A | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB50B | B | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB65A | A | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB65B | B | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB80A | A | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB80B | B | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB90A | A | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB90B | B | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB100A | A | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB100B | B | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB130A | A | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB130B | B | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB150A | A | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
| CB150B | B | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
| FAQ |
| Q: Are you a trade company or a manufacturer ? |
| A: We are ISO9001:2008 Certificated factory. |
| Q: Can you provide samples ? is it free or extra ? |
| A: Yes, we can provide free samples for customer’s testing. |
| Q: Can I have my logo in your product ? |
| A: Yes, OEM and ODM are available for us. |
| Q: Can I have a visit to your factory before the order ? |
| A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
