Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | changsha |
|---|---|
| Brand Name: | VIBO |
| Certification: | ISO9001,ISO18001,ISO45001 |
| Model Number: | VSB |
| Minimum Order Quantity: | 100KG |
| Price: | Negotiable |
| Delivery Time: | 4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20tons per mouths |
| Material: | Bimetallic | Hardness: | 63HRC |
|---|---|---|---|
| Applicable Industries: | Energy & Mining | Type: | Shaped Wear Bars |
| Machine Type: | Crusher Bucket Excavator | Size: | 275x16x29mm |
| Shearing Strength: | 210Mpa Min | Impact Toughness: | Up To 150J/cm2 |
| High Light: | 63HRC Bimetallic Wear Bars,275x16x29mm Bimetallic Wear Bars,0.9kgs Bimetallic Wear Bars |
||

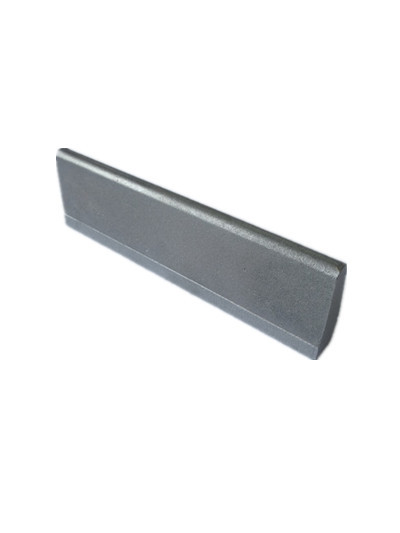

Customerized Shaped 63HRC 275x16x29mm Bimetallic Wear Bars
| Product Description |
Chrome carbide bimetallic shaped wear bars for mining industry
Shaped Wear Bars are designed for prevention of gouging wear and thus allow buckets and equipment to run longer requiring far less down time for maintenance. Shaped Wear Bars are available in different shapes to suit specific applications.
Applications:
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||||
| A | B | C | D | E | F | G | ||||
| VSB1200 | 1 | 200x20x30 | 200 | 13 | 20 | 20 | 10 | 30 | 0.8 | |
| VSB1244 | 1 | 244x25x35 | 244 | 10 | 25 | 25 | 10 | 35 | 1.4 | |
| VSB1202 | 1 | 202x25x35 | 202 | 10 | 25 | 25 | 10 | 35 | 0.9 | |
| VSB2275 | 2 | 275x16x29 | 275 | 5 | 16 | 21 | 8 | 29 | 16 | 0.9 |
| VSB3150 | 3 | 150x40x70 | 150 | 10 | 40 | 60 | 10 | 70 | 20 | 2.4 |
| VSB3200 | 3 | 200x25x59 | 200 | 3 | 25 | 47 | 12 | 59 | 1.3 | |
| VSB4125 | 4 | 125x40x90 | 125 | 10 | 70 | 80 | 10 | 90 | 4.3 | |
| VSB4200 | 4 | 200x25x50 | 200 | 10 | 25 | 38 | 12 | 50 | 1.5 | |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
| FAQ |
| Q: Are you a trade company or a manufacturer ? |
| A: We are ISO9001:2008 Certificated factory. |
| Q: Can you provide samples ? is it free or extra ? |
| A: Yes, we can provide free samples for customer’s testing. |
| Q: Can I have my logo in your product ? |
| A: Yes, OEM and ODM are available for us. |
| Q: Can I have a visit to your factory before the order ? |
| A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
