Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Domite, OEM, GET |
| Certification: | ASTM |
| Minimum Order Quantity: | 500 Kilogram/Kilograms |
| Price: | $4.00 - $10.00 / Kilogram |
| Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
| Supply Ability: | 200 Ton/Tons per Month |
| Applicable Industries: | Energy & Mining | Type: | Chocky Bar |
|---|---|---|---|
| Machine Type: | Crusher,Lip Protectors,bucket | Material: | Chromium |
| Processing Type: | Casting | Use: | Coal Mining, Ore Mining, Well Drilling |
| Hardness: | 63-65HRC | Shearing Strength: | 210MPa Min |
| Impact Toughness: | 150J/cm2 | Application: | Quarry, Cement Plant, Ore Mining |
| Highlight: | 65HRC Chocky Bars,loaders Chocky Bars,23mm Chocky Bars |
||

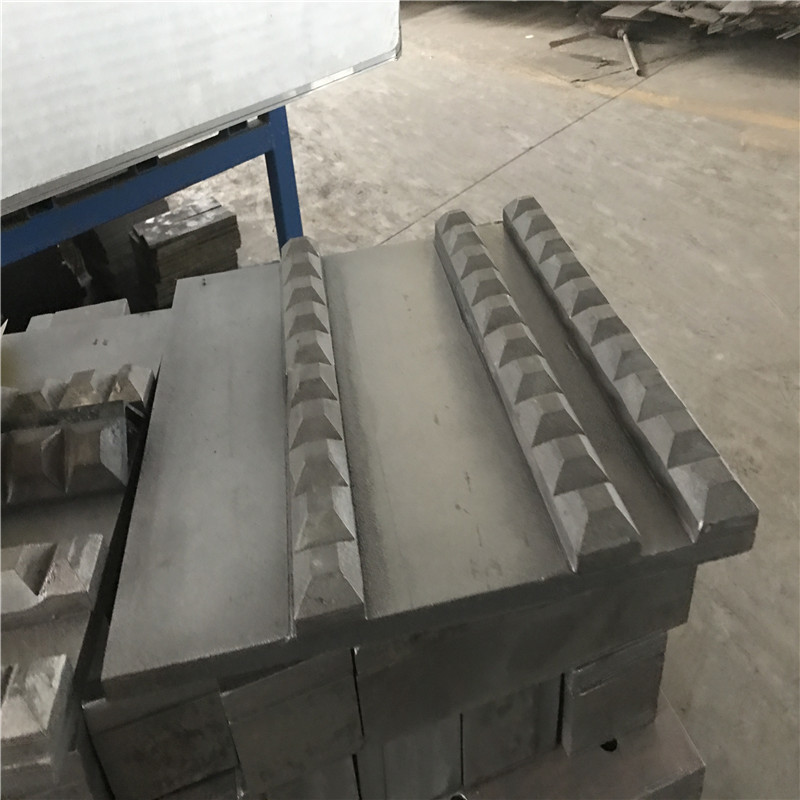

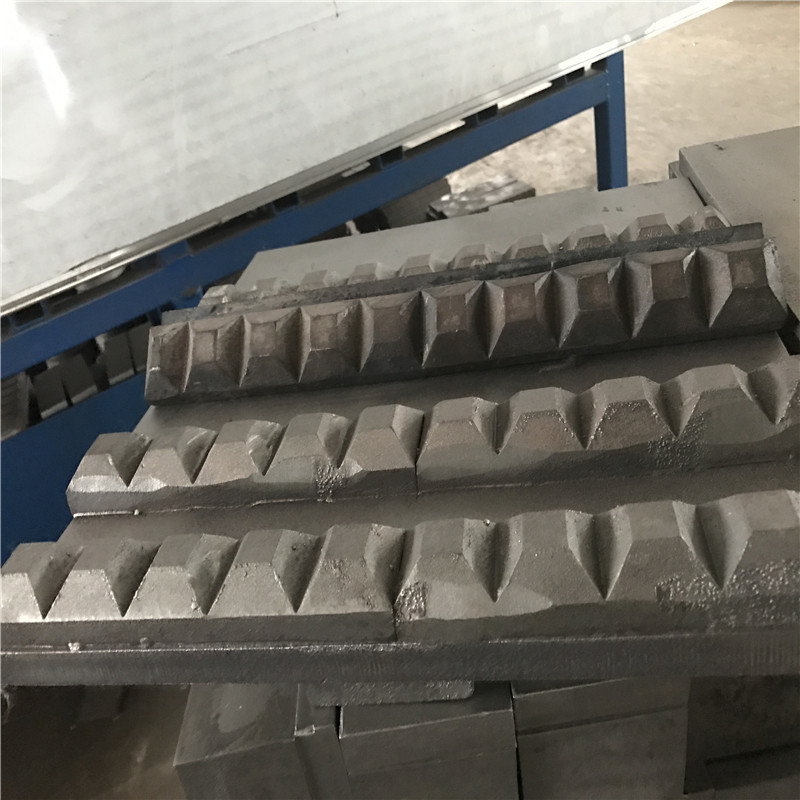

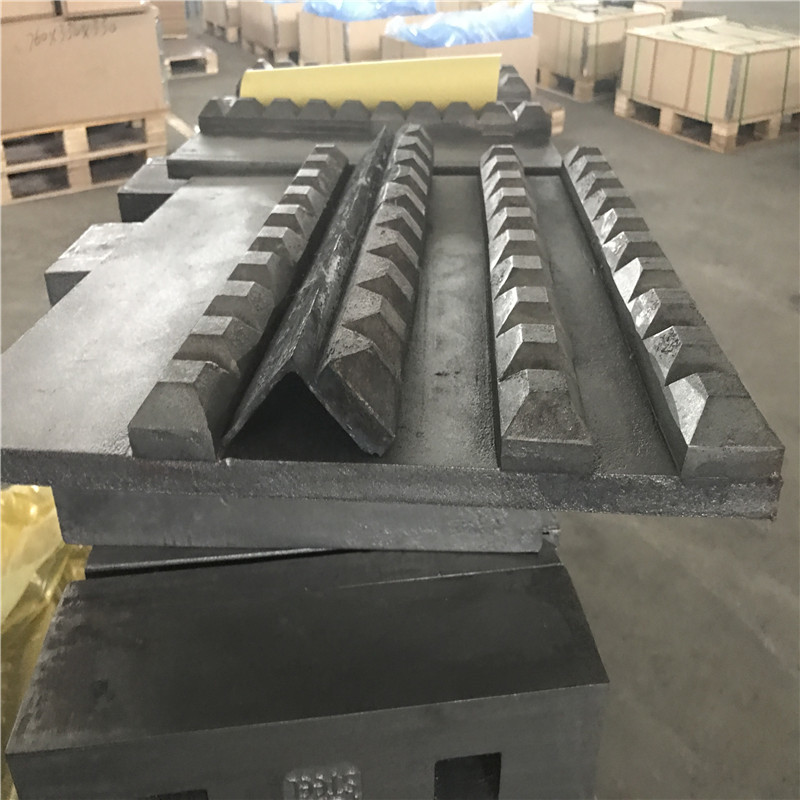

65HRC Chocky Bars
| Product Description |
Description of Chocky Bars
Chocky Bars are available in a wide range of sizes to fit all of your unique applications and are an inexpensive, effective protection alternative to expensive, labour intensive, hard facing welding methods.
Easy to use, cut and shape over contoured surfaces. There is also no pre-heating or post heating required when welding Chocky Bars into place.
Applications for Chocky Bars are wide and varied, ranging from wear protection on buckets for loaders, excavators, draglines machines, pump housings, impellors, chute/hopper linings to hammer tips for recycling industry.
Product Application
• Chute liners / rock box bars and liners
• Quarry and mining grizzly screens
• Suction mouths dredging industry
• Protection of knives tunnel boring machines
• Shredder / grinder tips
• Feeder deck plates
• Protection drag-heads
• Shovel bucket protection
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| CB25A | A | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB25B | B | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB40A | A | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB40B | B | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB50A | A | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB50B | B | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB65A | A | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB65B | B | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB80A | A | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB80B | B | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB90A | A | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB90B | B | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB100A | A | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB100B | B | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB130A | A | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB130B | B | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB150A | A | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
| CB150B | B | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
