Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | VIBO |
| Certification: | ASTM |
| Model Number: | CB50 |
| Minimum Order Quantity: | 500 Kilogram/Kilograms |
| Price: | $4.00 - $5.00 / Kilogram |
| Packaging Details: | Polywood crates, polywood pallets, ware-proof film Bimetallic chocky bars/ wear blocks/ 63 HRC CB50 for special wear protection in mining places |
| Supply Ability: | 300 Ton/Tons per Month Bimetallic chocky bars/ wear blocks/ 63 HRC CB50 for special w |
| Condition: | New | Warranty: | Unavailable |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Type: | Chocky Bars,wear Blocks, Wear Parts |
| Machine Type: | Crusher,bucket,excavator | Material: | Chromium |
| Processing Type: | Casting | Use: | Ore Mining Earthmoving |
| HARDNESS: | 63HRC | DENSITY: | 7.8 |
| Shearing Strength: | 210Mpa | Impact Toughness: | 150J/c㎡ |
| Color: | Metallic | Size: | 240*50*23mm |
| Highlight: | CB50 Bucket Wear Strips,63HRC Bucket Wear Strips,240*50*23mm Bucket Wear Strips |
||

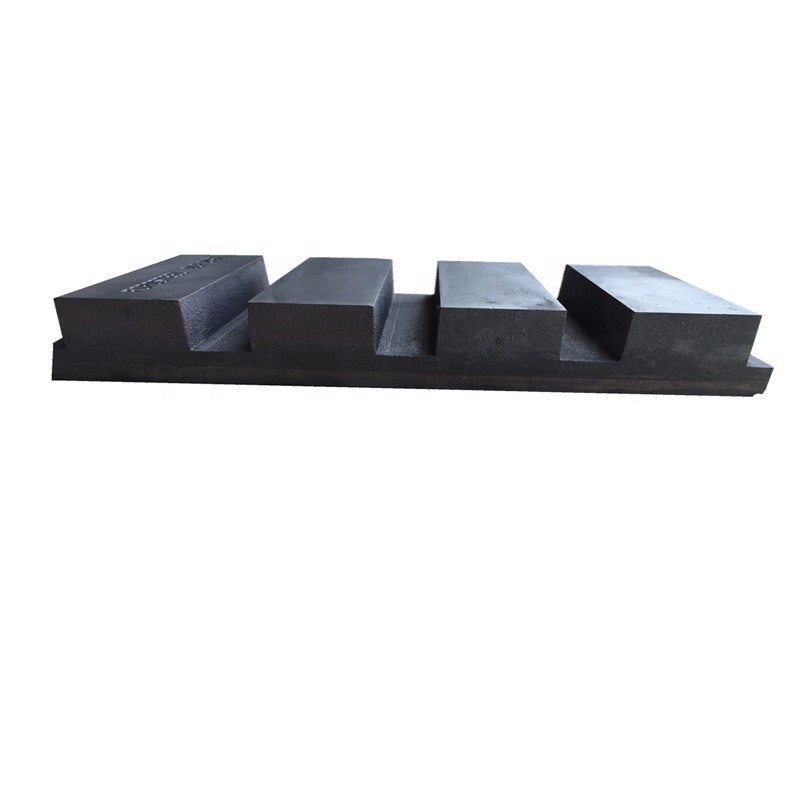

63HRC 240*50*23mm Bimetallic CB50 Bucket Wear Strips
| Product Description |

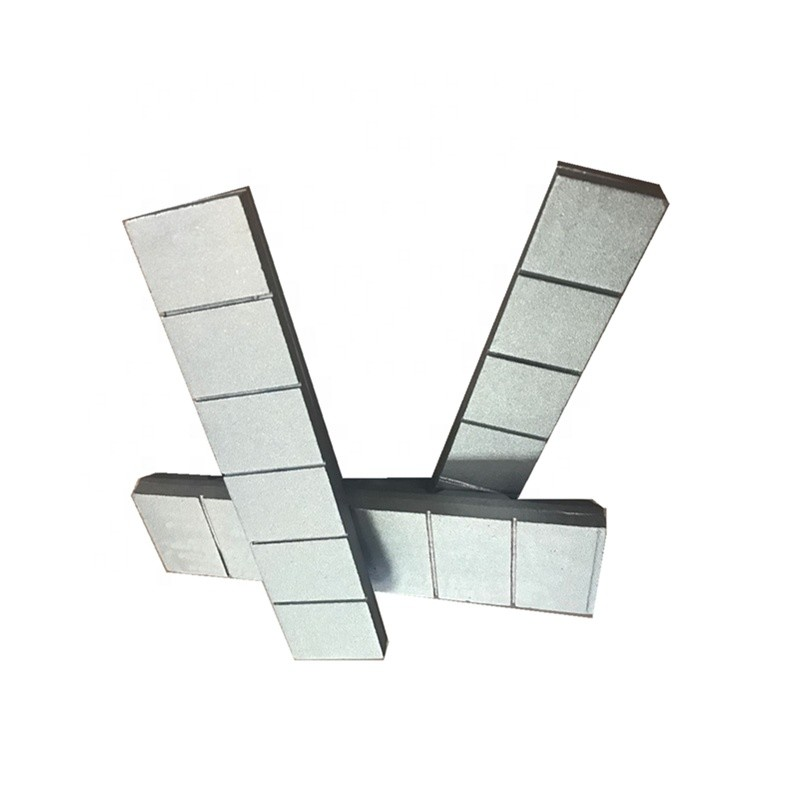

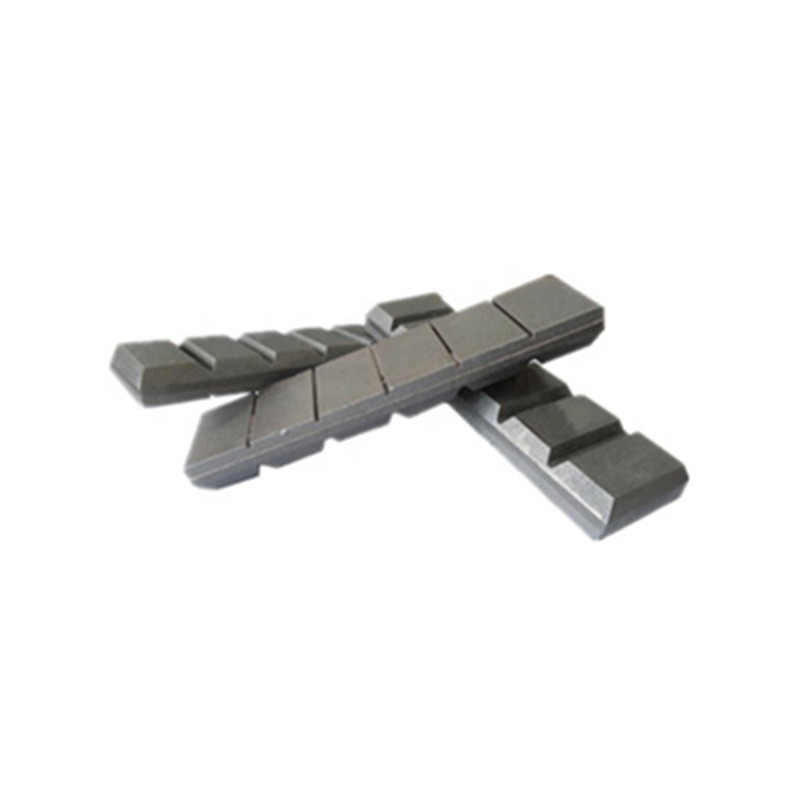

Description of Chocky Bars
Easy to use with no excessive cutting when compared to sheets or plates, Chocky bars can be formed onto inside or outside contoured surfaces to provide an extra level of protection for wear and impact applications.
Used for a variety of wear protection on buckets, excavators, dragline machines or for lining chutes and rock box edges Chocky Bars can be used in conjunction with other wear products to give you that extra advantage.
Benefits:
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| CB25A | A | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB25B | B | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB40A | A | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB40B | B | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB50A | A | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB50B | B | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB65A | A | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB65B | B | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB80A | A | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB80B | B | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB90A | A | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB90B | B | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB100A | A | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB100B | B | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB130A | A | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB130B | B | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB150A | A | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
| CB150B | B | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
