Place of Origin: | china |
---|---|
Brand Name: | VIBO,OEM |
Certification: | ASTM |
Model Number: | CB100 |
Minimum Order Quantity: | 500 Kilogram/Kilograms |
Price: | $4.00 - $10.00 / Kilogram |
Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
Supply Ability: | 200 Ton/Tons per Month |
Condition: | New | Applicable Industries: | Energy & Mining |
---|---|---|---|
Type: | CHOCKY BAR | Machine Type: | Crusher |
Material: | Chromium | Processing Type: | Casting |
Use: | Coal Mining | Hardness: | 63HRC/700BHN |
DENSITY: | 7.8 | Size: | 240*100*23mm |
Highlight: | 100mm Chocky Bars,700 BHN chocky blocks,700BHN chocky blocks |

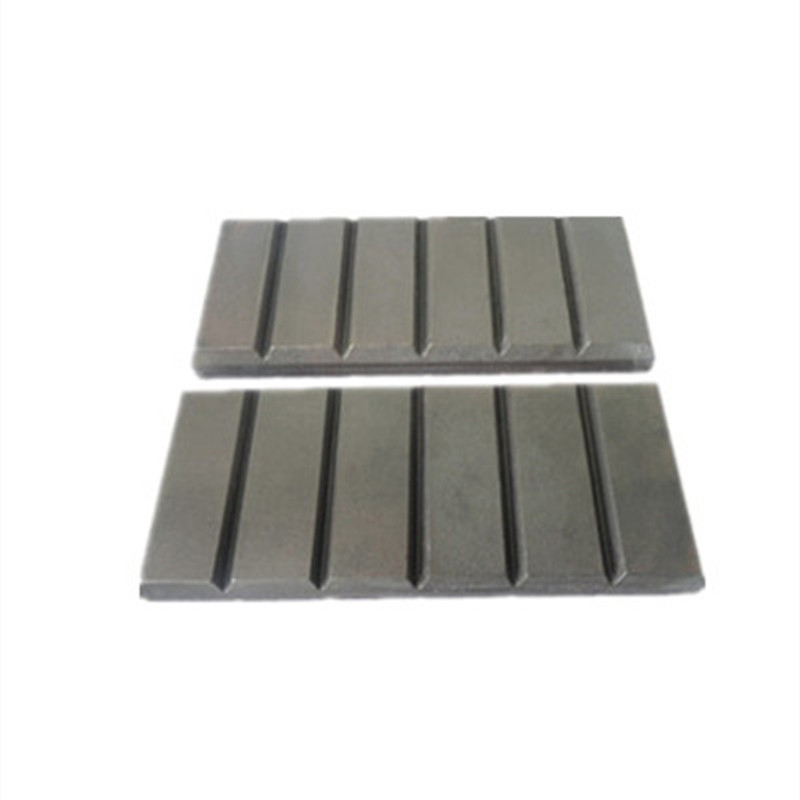

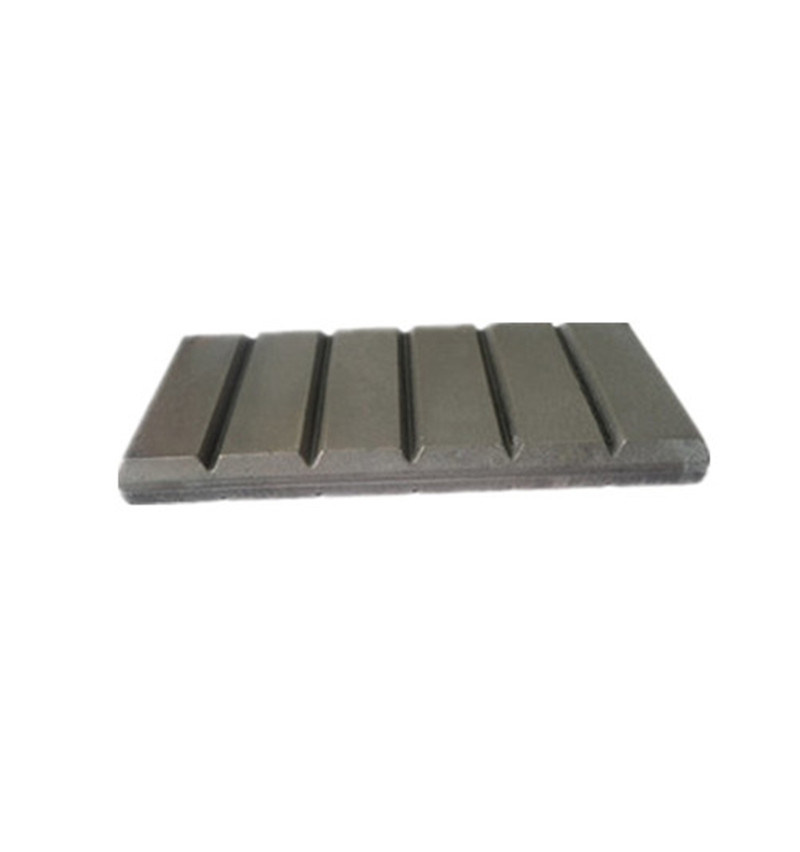

100mm Width 700BHN High Chromium Chocky Bars For Dredging
Product Description |
Description of Chocky Bars
Laminated White Iron Wear Blocks combined very high wear resistant qualities of a high chrome cast iron (15/3CrMo, 700 BHN – 63 HRc) with a weldable & high impact toughness mild steel by Vacuum brazing furnace, which are exceptionally resistant to impact and abrasion while retaining.
Advantages
1. Material:
1) We use high quality 15/3CrMo steel for the top layer, which follows US field standard strictly.
2) For the base layer, we use Q235 mild carbon steel.
3) We purchase high quality steel from top-rated steel plant, both steel chemical elements & steel properties are well promised.
2. Welding technique
We adopt Vacuum Brazing technique for welding, two layers could be tightly laminated, and effective laminated surface percentage is higher than 95%, thus laminated layers won't seperate under tough working condition.
3. Custom logo could be put onto the product.
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
CB25A | A | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
CB25B | B | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
CB40A | A | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
CB40B | B | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
CB50A | A | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
CB50B | B | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
CB65A | A | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
CB65B | B | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
CB80A | A | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
CB80B | B | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
CB90A | A | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
CB90B | B | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
CB100A | A | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
CB100B | B | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
CB130A | A | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
CB130B | B | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
CB150A | A | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
CB150B | B | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
