Place of Origin: | Hunan, China |
---|---|
Brand Name: | OEM, GET |
Certification: | ASTM |
Model Number: | CB90 |
Minimum Order Quantity: | 500 Kilogram/Kilograms |
Price: | $4.00 - $10.00 / Kilogram |
Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
Supply Ability: | 200 Ton/Tons per Month |
Applicable Industries: | Energy & Mining | Local Service Location: | None |
---|---|---|---|
Showroom Location: | None | Type: | Chocky Bar |
Machine Type: | Crusher,Lip Protectors,bucket | Material: | Chromium |
Processing Type: | Casting | Use: | Coal Mining, Ore Mining, Well Drilling |
Hardness: | 63-65HRC | Shearing Strength: | 210MPa Min |
Impact Toughness: | 150J/cm2 | Size: | 240*90*23mm |
Welding: | Vacuum Brazing | ||
Highlight: | 240*90*23mm Chocky Bars,CB90 Chocky Bars,240*90*23mm chocky blocks |

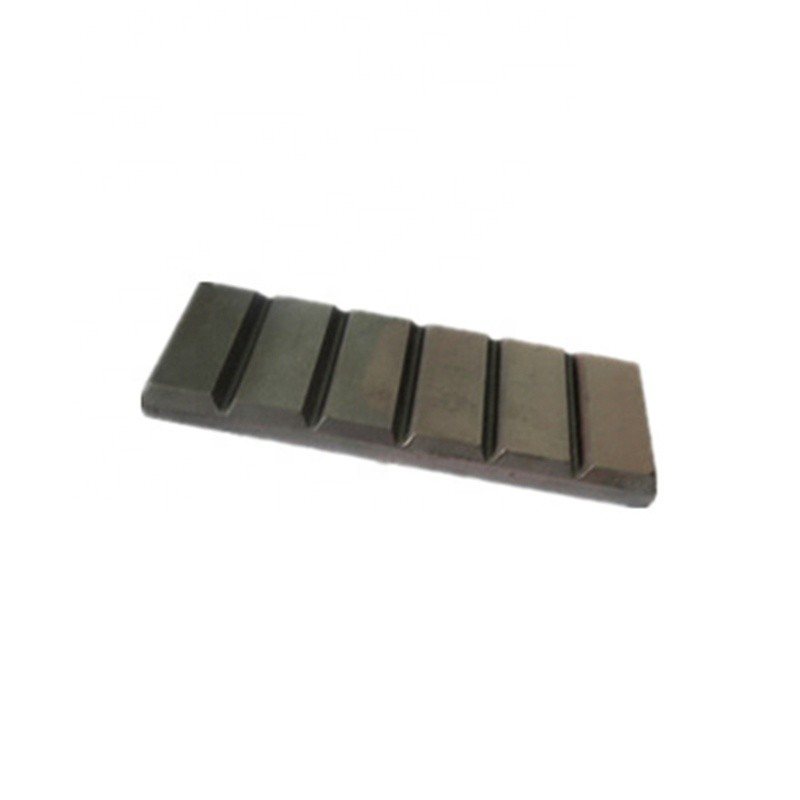

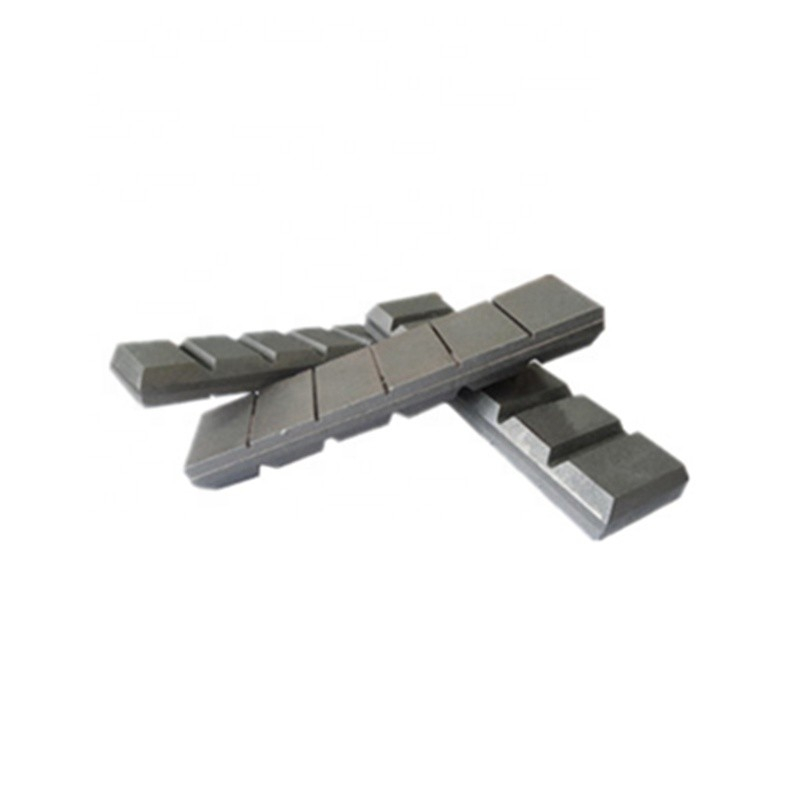

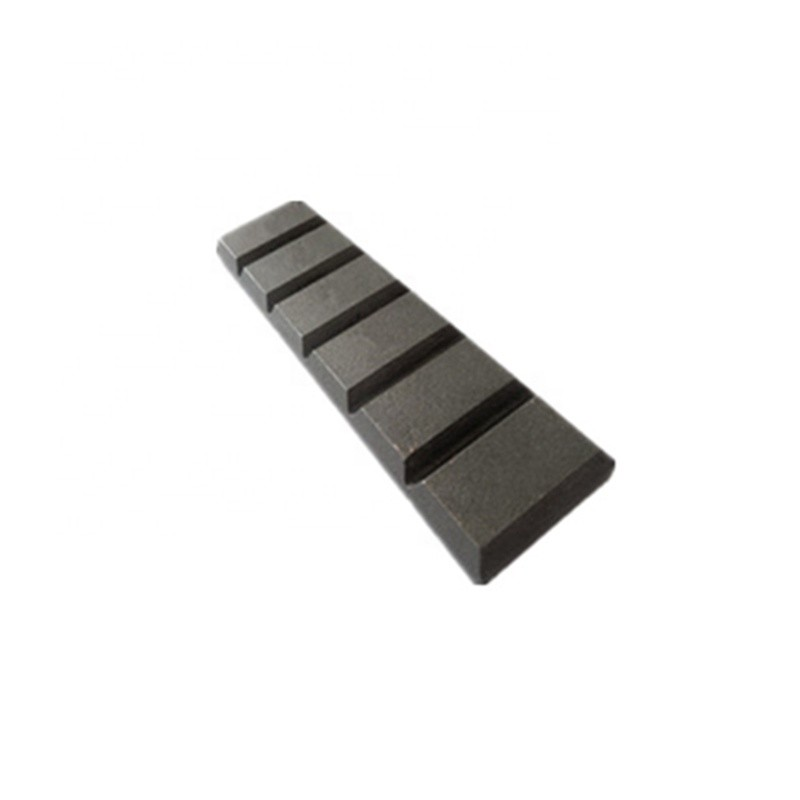

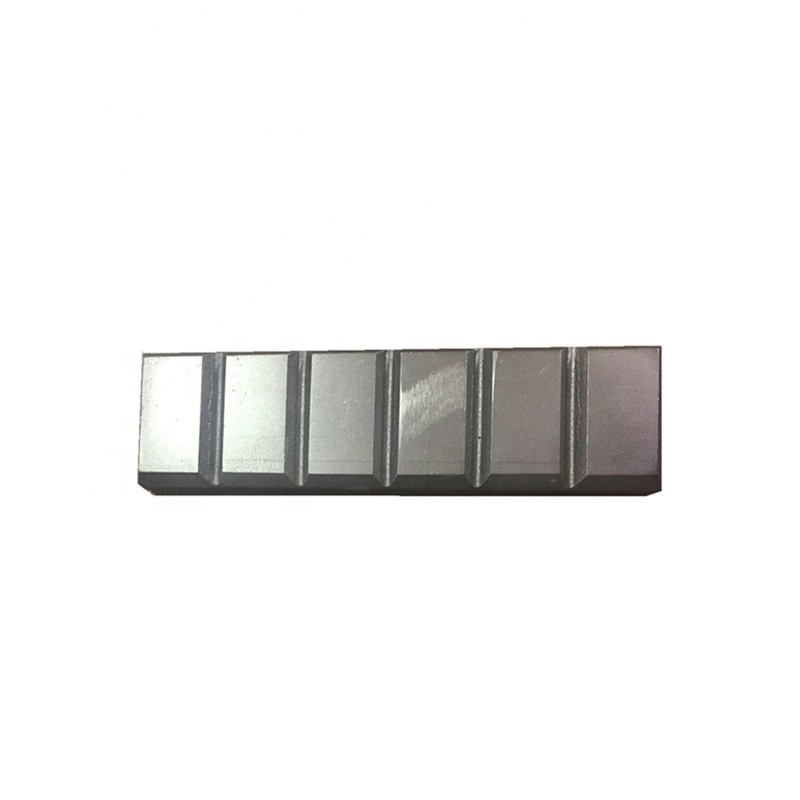

65HRC 240*90*23mm Laminated White Iron CB90 Chocky Bars
Product Description |
Description of Chocky Bars
Chocky bar is Used for a variety of wear protection on buckets, excavators,dragline machines or for lining chutes and rock box edges,VIBO Chocky Bars are available in a wide range of sizes. Thanks to the grooves and chocky shape,they can be bent,slit and formed onto inside or outside contoured surfaces easily.
Product Application
• Chute liners / rock box bars and liners
• Quarry and mining grizzly screens
• Suction mouths dredging industry
• Protection of knives tunnel boring machines
• Shredder / grinder tips
• Feeder deck plates
• Protection drag-heads
• Shovel bucket protection
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
CB25A | A | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
CB25B | B | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
CB40A | A | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
CB40B | B | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
CB50A | A | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
CB50B | B | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
CB65A | A | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
CB65B | B | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
CB80A | A | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
CB80B | B | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
CB90A | A | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
CB90B | B | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
CB100A | A | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
CB100B | B | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
CB130A | A | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
CB130B | B | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
CB150A | A | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
CB150B | B | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
FAQ |
Q: Are you a trade company or a manufacturer ? |
A: We are ISO9001:2008 Certificated factory. |
Q: Can you provide samples ? is it free or extra ? |
A: Yes, we can provide free samples for customer’s testing. |
Q: Can I have my logo in your product ? |
A: Yes, OEM and ODM are available for us. |
Q: Can I have a visit to your factory before the order ? |
A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
