Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | VIBO |
| Certification: | ASTM |
| Model Number: | CB100 |
| Minimum Order Quantity: | 200 Kilogram/Kilograms |
| Price: | $4.00 - $10.00 / Kilogram |
| Packaging Details: | STANDARD PACKING |
| Supply Ability: | 3000 Kilogram/Kilograms per Day |
| Unit Weight: | 3.9kgs | Applicable Industries: | Crushing&Mining |
|---|---|---|---|
| Type: | Chocky Bar | Machine Type: | BUCKETS / EXCAVATORS / CRUSHER |
| Material: | Chromium | Size: | 240*100*23mm |
| Use: | ORE MINING & COAL MINING & EARTHMOVING | Hardness: | 63HRC |
| Shearing Strength: | 210Mpa Min | Impact Toughness: | Up To 150J/cm2 |
| Color: | Black | ||
| High Light: | CB100 loader bucket wear parts,240*100*23mm loader bucket wear parts,3.9kgs loader bucket wear parts |
||
240*100*23mm Unit Weight 3.9kgs CB100 Loader Bucket Wear Parts
| Product Description |

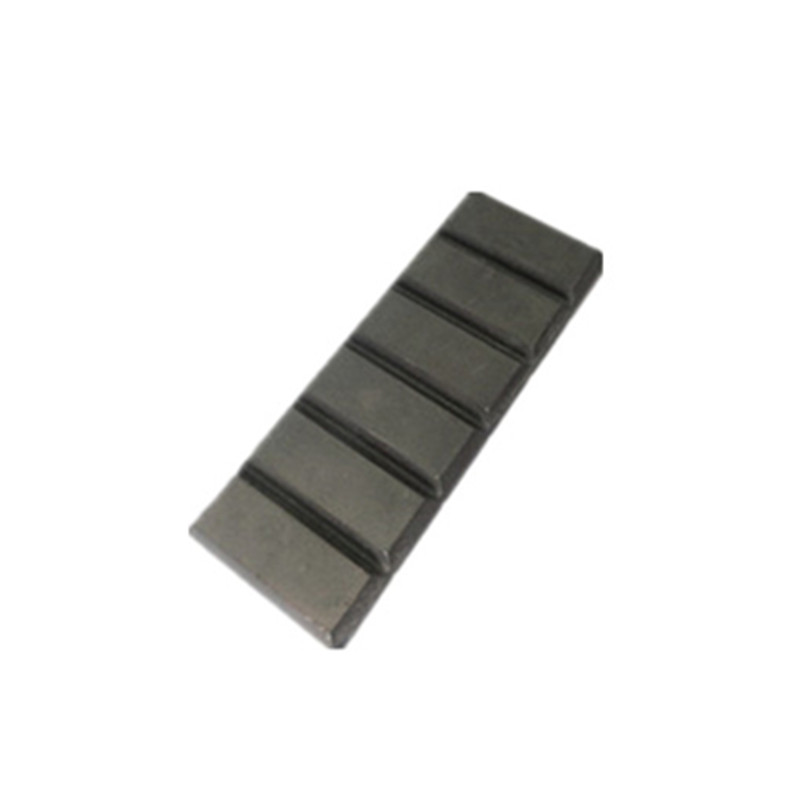

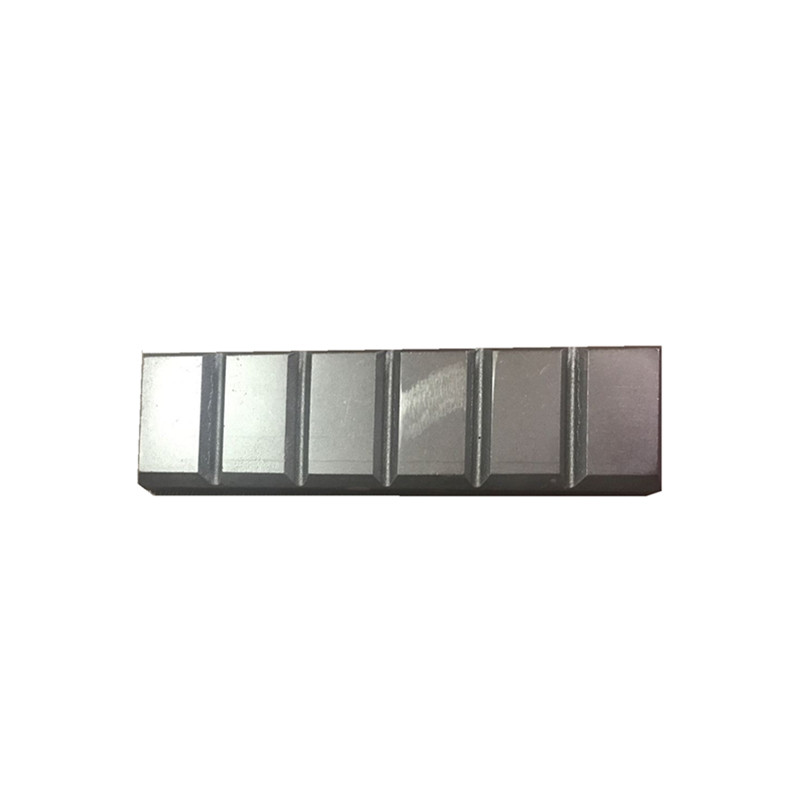

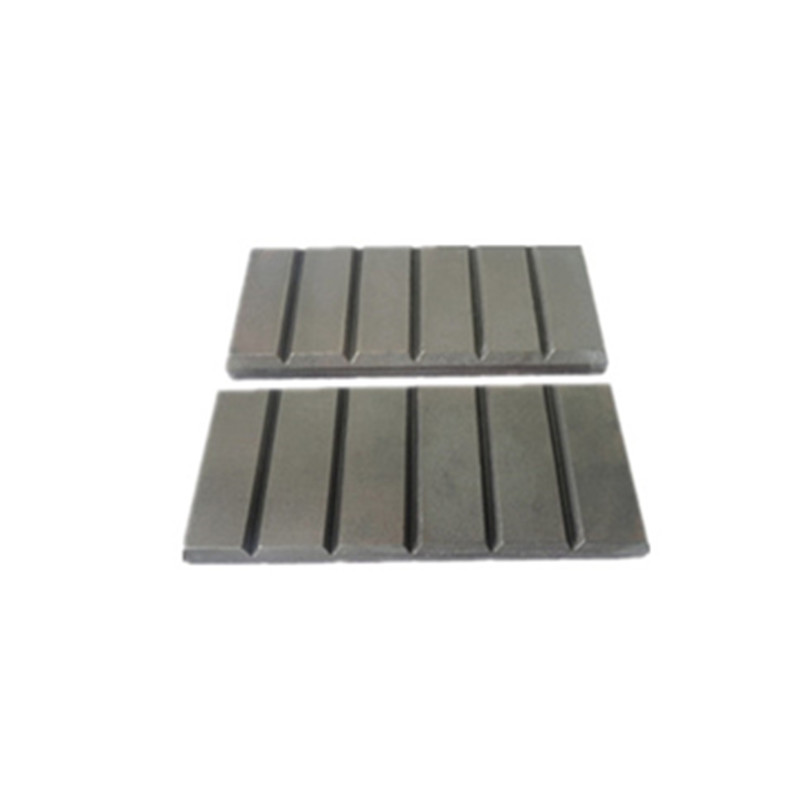

Description of Chocky Bars
Laminated High-Chromium White Iron Wear Bars is Used for a variety of wear protection on buckets, excavators,dragline machines or for lining chutes and rock box edges, VIBO Chocky Bars are available in a wide range of sizes. Thanks to the grooves and chocky shape,they can be bent,slit and formed onto inside or outside contoured surfaces easily.
Chocky bars ‘standard thickness is 23mm, standard length is 240mm, width from 25mm to 150mm. VIBO can supply special type according to customers drawing.
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| CB25A | A | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB25B | B | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB40A | A | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB40B | B | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB50A | A | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB50B | B | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB65A | A | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB65B | B | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB80A | A | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB80B | B | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB90A | A | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB90B | B | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB100A | A | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB100B | B | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB130A | A | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB130B | B | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB150A | A | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
| CB150B | B | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
