Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | Hunan, China |
|---|---|
| Brand Name: | VIBO, OEM |
| Certification: | ASTM |
| Minimum Order Quantity: | 500 Kilogram/Kilograms |
| Price: | $4.00 - $12.00 / Kilogram |
| Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
| Supply Ability: | 100 Ton/Tons per Month |
| Applicable Industries: | Energy & Mining | Type: | Skid Wear Bar |
|---|---|---|---|
| Machine Type: | Dippers&Bucket&Excavators | Material: | Chromium |
| Processing Type: | Casting | Use: | Ore Mining & Coal Mining |
| Hardness: | 63HRC | Shearing Strength: | 210Mpa Min |
| Impact Toughness: | UP TO 150J/cm2 | Unit Weight: | 8.4kgs |
| Size: | 304*101*34mm | ||
| Highlight: | 304*101*34mm Skid Bars,8.4kgs Skid Bars,63HRC Skid Bars |
||

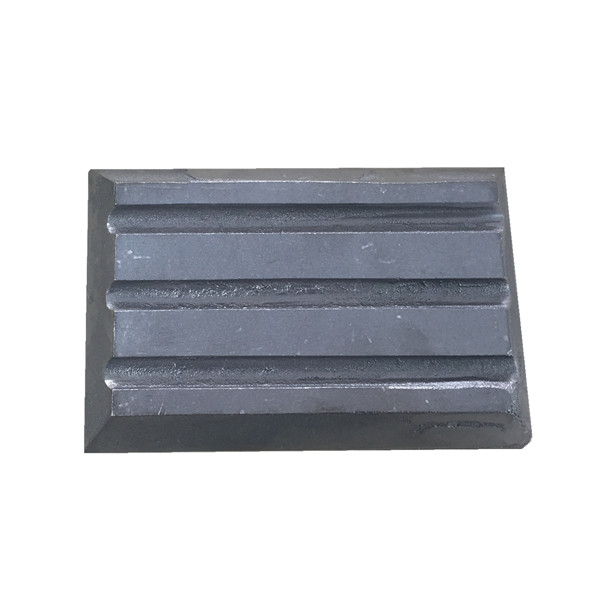

Unit Weight 8.4kgs 304*101*34mm Skid Bars For Wheel Loaders
| Product Description |
Description
Skid bars are designed to protect and extend life of mining and quarrying heavy buckets for wheel loaders, excavator and dippers. They are commonly used on most high capacity, heavy duty buckets for wheel loaders, excavators and dippers. For operations subject to gouging abrasion under extreme loads, VIBO Skid Bars provide the robust installation and wear protection needed to extend the equipment’s service life.
Applications
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| VSK11 | 1 | 214*101*34 | 214 | 101 | 22 | 12 | 34 | 5.1 |
| VSK12 | 1 | 302*101*34 | 302 | 101 | 22 | 12 | 34 | 7.3 |
| VSK13 | 1 | 154*101*34 | 154 | 101 | 22 | 12 | 34 | 3.7 |
| VSK14 | 1 | 279*75*34 | 279 | 75 | 22 | 12 | 34 | 6.1 |
| VSK21 | 2 | 214*101*34 | 214 | 101 | 22 | 12 | 34 | 5.9 |
| VSK22 | 2 | 304*101*34 | 304 | 101 | 22 | 12 | 34 | 8.4 |
| VSK23 | 2 | 154*22*34 | 154 | 101 | 22 | 12 | 34 | 4.2 |
| VSK31 | 3 | 250*20*45 | 250 | 150 | 20 | 25 | 45 | 13.1 |
| VSK32 | 3 | 200*20*45 | 200 | 150 | 20 | 25 | 45 | 10.5 |
| VSK33 | 3 | 250*20*45 | 250 | 250 | 20 | 25 | 45 | 21.9 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
