Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | Hunan, China |
|---|---|
| Brand Name: | VIBO,OEM |
| Certification: | ASTM |
| Minimum Order Quantity: | 500 Kilogram/Kilograms |
| Price: | $5.00 - $14.00 / Kilogram |
| Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
| Supply Ability: | 100 Ton/Tons per Month |
| Applicable Industries: | Food & Beverage Factory | Type: | Hammer Tips |
|---|---|---|---|
| Machine Type: | Crusher,shredder | Material: | Chromium |
| Processing Type: | Casting | Use: | Sugar Industry &Coal Mining & Earthmoving |
| Hardness: | 63HRC | Shearing Strength: | 210Mpa Min |
| Impact Toughness: | Up To 150J/cm2 | Color: | Metallic |
| SHAPES: | BUTTERFLY | ||
| Highlight: | 63HRC Shredder Hammer Tips,Butterfly Shredder Hammer Tips,Shredder Hammer Tips For Sugarcane Crushing |
||

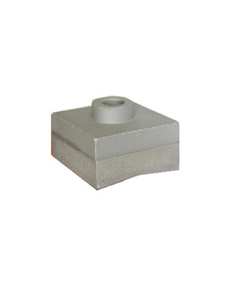

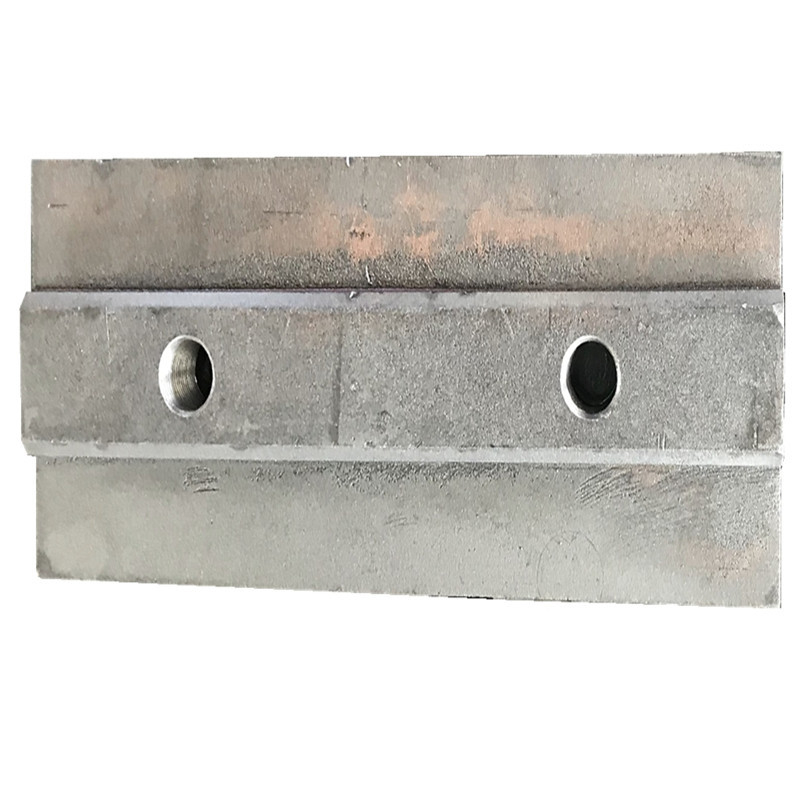

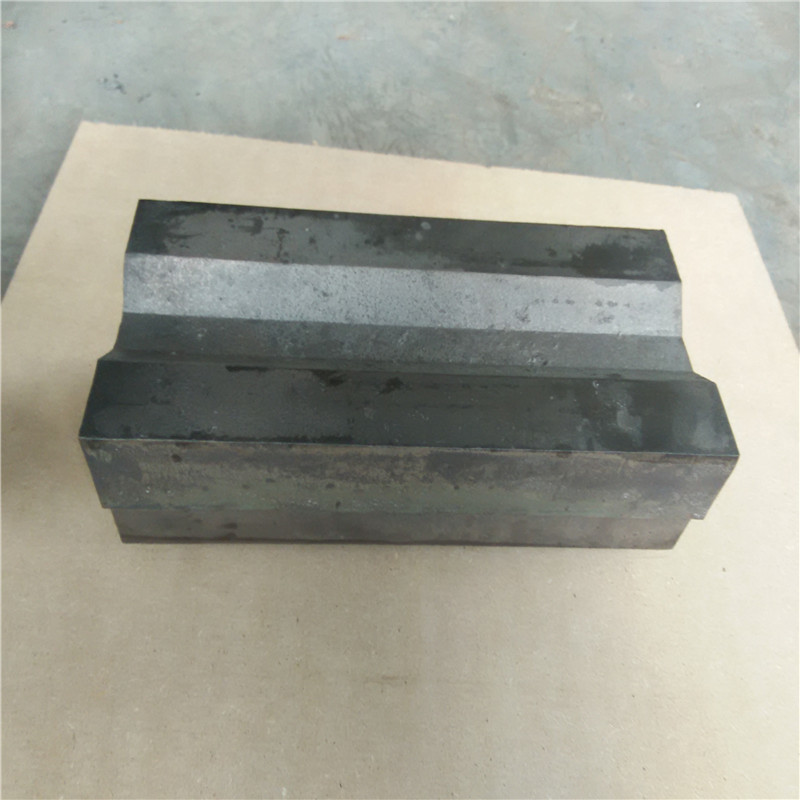

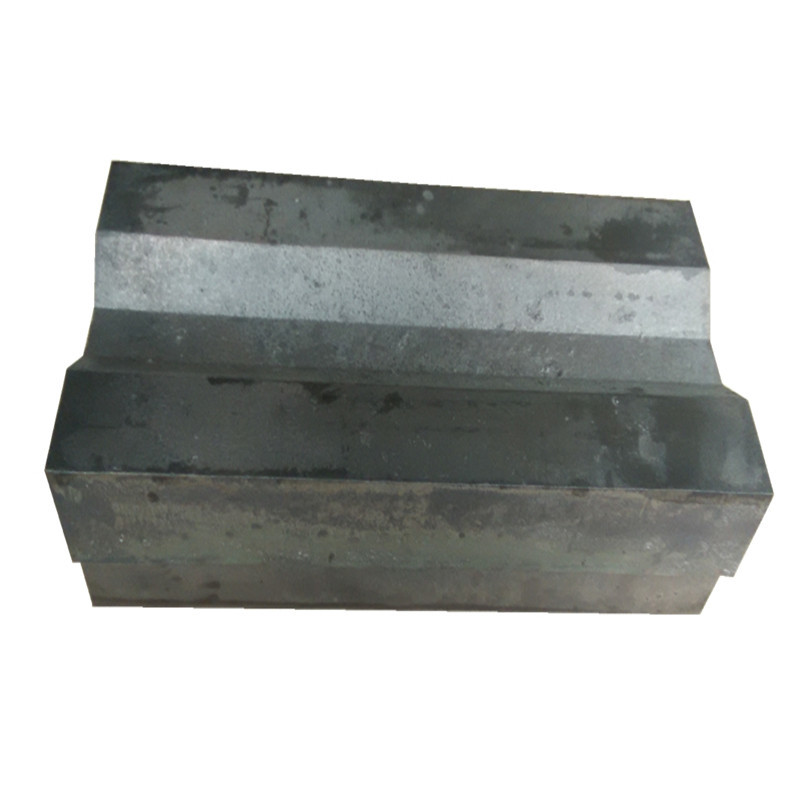

Butterfly Shape 63HRC Shredder Hammer Tips For Sugarcane Crushing
| Product Description |
These shredder hammer tip are used as an alternative to conventional hardfacing in :
These hammers find application in
1) Sugar Industry.
2) Mining & Mineral Processing Industry.
3) Cement & Steel Industry.
Available in various type, Shredder Hammer Tips are widely used in sugar cane shredding and coal crusher. They have sharp edges at the start of use that retain their sharpness and cutting efficiency longer than conventional hard facing.
We are manufacture a wide range of Mill House machinery ,equipments & components using quality tested raw materials, tailor made with high precision, accuracy & excellent workmanship as per the customer”s drawing. We ensure the entire range is tested on well defined quality parameters, thereby meeting customer’s specific requirements besides providing the desired performance. Shredder Hammer Tips
The comprehensive range of Hammer & Hammer Tips for Crushers & Hammer Mills offered by us is widely appreciated in the market. These wear resistant and impact resistant products are used in sugar, mining and mineral processing industries across the globe. These are fabricated in line with the set industry standards and also tested on well defined quality parameters to deliver flawless products.
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| H175 | 1 | 75x75x45 | 75 | 75 | 25 | 20 | 45 | 2 |
| H180 | 1 | 80x56x45 | 80 | 56 | 25 | 20 | 45 | 1.6 |
| H181 | 1 | 80x80x45 | 80 | 80 | 25 | 20 | 45 | 2.4 |
| H190 | 1 | 90x50x45 | 90 | 50 | 25 | 20 | 45 | 1.6 |
| H191 | 1 | 90x90x45 | 90 | 90 | 25 | 20 | 45 | 2.9 |
| H100 | 1 | 100x100x45 | 100 | 100 | 25 | 20 | 45 | 3.6 |
| H280 | 2 | 80x56x55 | 80 | 56 | 35 | 20 | 55 | 1.9 |
| H290 | 2 | 90x90x55 | 90 | 90 | 35 | 20 | 55 | 3.1 |
| H291 | 2 | 90x50x55 | 90 | 50 | 35 | 20 | 55 | 1.8 |
| H380 | 3 | 80x56x50 | 80 | 56 | 30 | 20 | 50 | 1.9 |
| H390 | 3 | 90x90x50 | 90 | 90 | 30 | 20 | 50 | 3.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
| FAQ |
| Q: Are you a trade company or a manufacturer ? |
| A: We are ISO9001:2008 Certificated factory. |
| Q: Can you provide samples ? is it free or extra ? |
| A: Yes, we can provide free samples for customer’s testing. |
| Q: Can I have my logo in your product ? |
| A: Yes, OEM and ODM are available for us. |
| Q: Can I have a visit to your factory before the order ? |
| A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
