| Place of Origin: | Hunan, China |
|---|---|
| Brand Name: | VIBO |
| Model Number: | H390 |
| Minimum Order Quantity: | 500 Kilogram/Kilograms |
| Price: | $4.00 - $10.00 / Kilogram |
| Supply Ability: | 200 Ton/Tons per Month |
| Quantity: | |
|---|---|

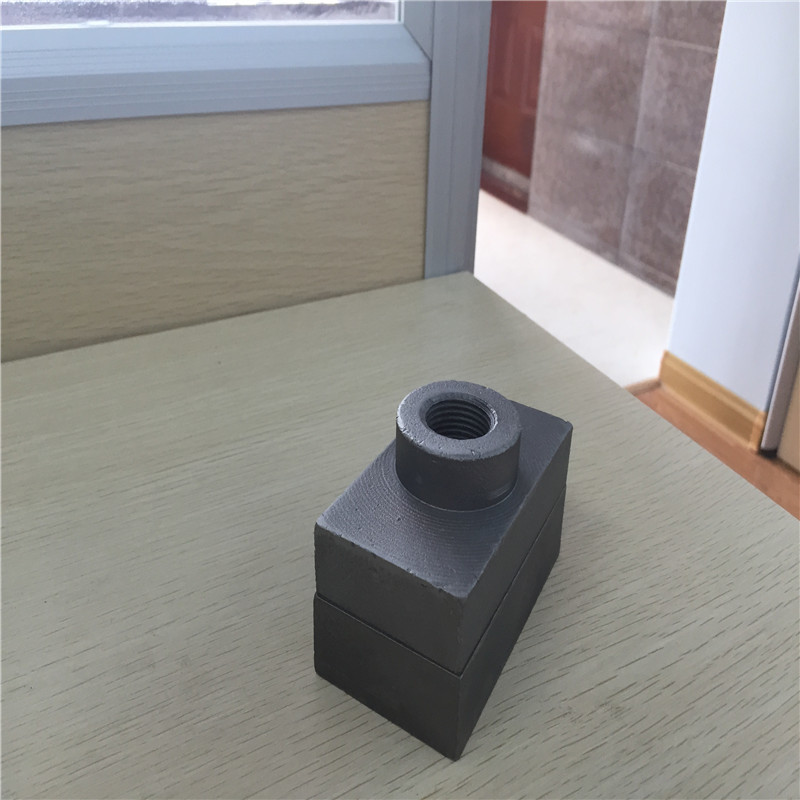

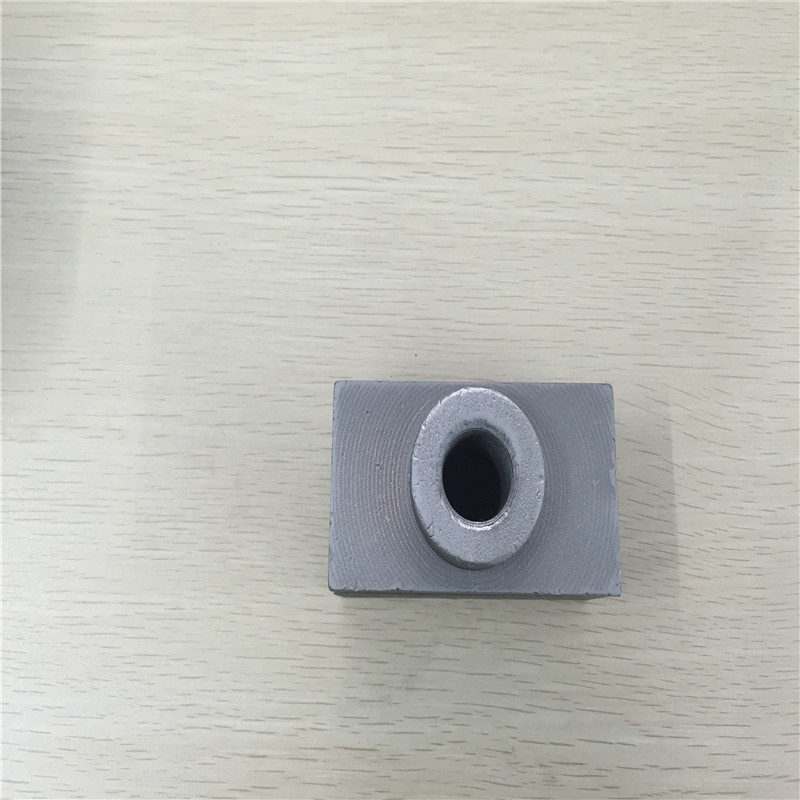

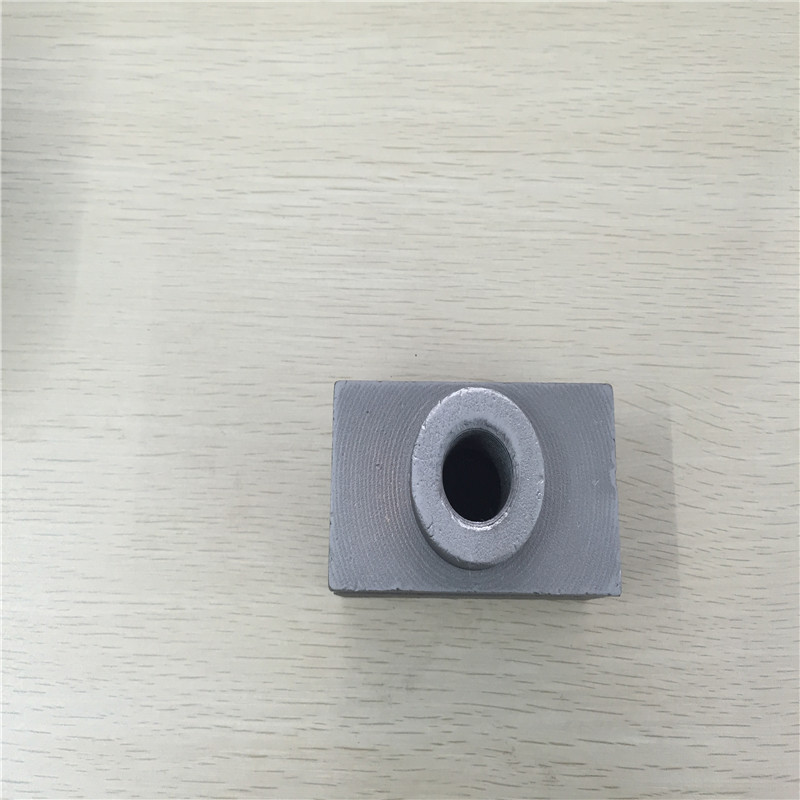

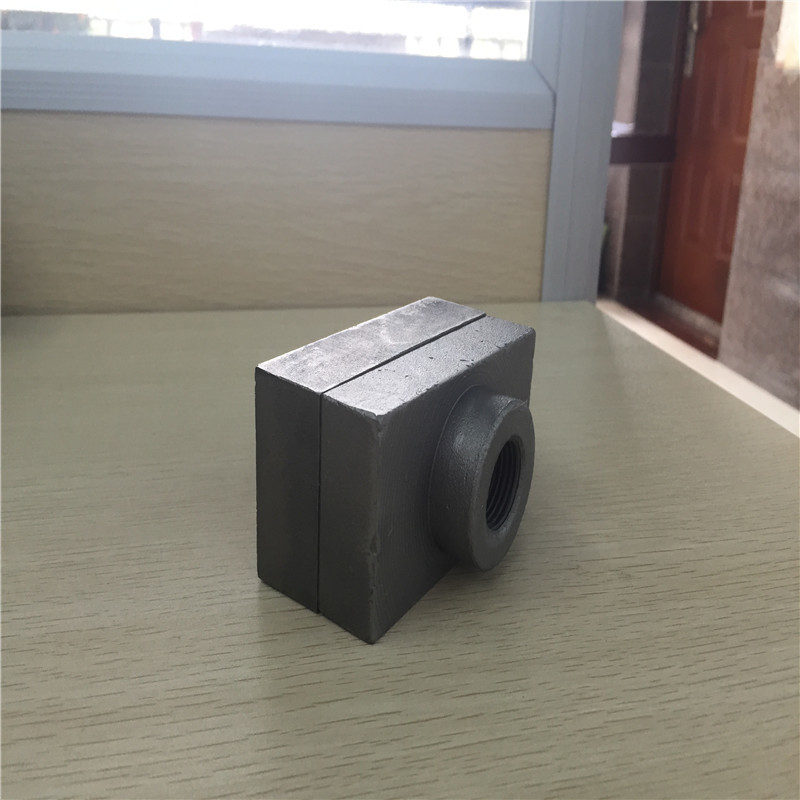

80x80x45mm / 90x50x45mm High Chromium Shredder Hammer Tips
| Product Description |
Shredder hammer maintenance is one of the main targets in cost reduction efforts in cane crushing factories. Recent developments in shredder hammer technology remain far from improving the current situation in the matter of wear in cane preparation machinery. Trials with very hard but brittle materials such as ceramics and tungsten carbide tips had left white iron (FeCrC) alloys as the most cost-effective choice, especially when used as replaceable mild steel blocks with brazed tips. In an effort to develop a more cost-effective solution, a combination of the replaceable block and Flux-Cored Arc Welding (FCAW) (possible to be repaired a few times) was evaluated under factory trials and with a comprehensive analysis that includes maintenance costs, energy and pol losses in bagasse. Wear performance of welded tips made with hardfacing alloys and bolted to shredder hammers is reported and compared to commercially available tips and other conventional technologies. It was found that welded tips are likely to be cost effective under the evaluated conditions and a complete welding procedure was developed for production and maintenance of the tips.
Mechanical Property
1) Tensile Strength 630Mpa Min
2) Shearing Strength 250Mpa Min
3) Hardness 63HRC/700BHN
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| H175 | 1 | 75x75x45 | 75 | 75 | 25 | 20 | 45 | 2 |
| H180 | 1 | 80x56x45 | 80 | 56 | 25 | 20 | 45 | 1.6 |
| H181 | 1 | 80x80x45 | 80 | 80 | 25 | 20 | 45 | 2.4 |
| H190 | 1 | 90x50x45 | 90 | 50 | 25 | 20 | 45 | 1.6 |
| H191 | 1 | 90x90x45 | 90 | 90 | 25 | 20 | 45 | 2.9 |
| H100 | 1 | 100x100x45 | 100 | 100 | 25 | 20 | 45 | 3.6 |
| H280 | 2 | 80x56x55 | 80 | 56 | 35 | 20 | 55 | 1.9 |
| H290 | 2 | 90x90x55 | 90 | 90 | 35 | 20 | 55 | 3.1 |
| H291 | 2 | 90x50x55 | 90 | 50 | 35 | 20 | 55 | 1.8 |
| H380 | 3 | 80x56x50 | 80 | 56 | 30 | 20 | 50 | 1.9 |
| H390 | 3 | 90x90x50 | 90 | 90 | 30 | 20 | 50 | 3.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
| PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|  |
 | |
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
| |
