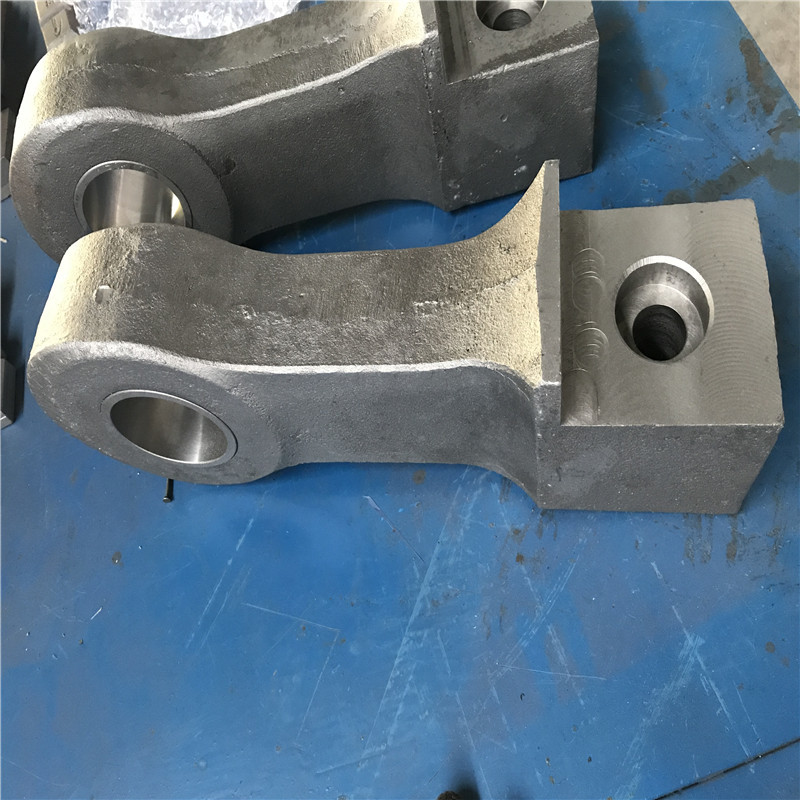

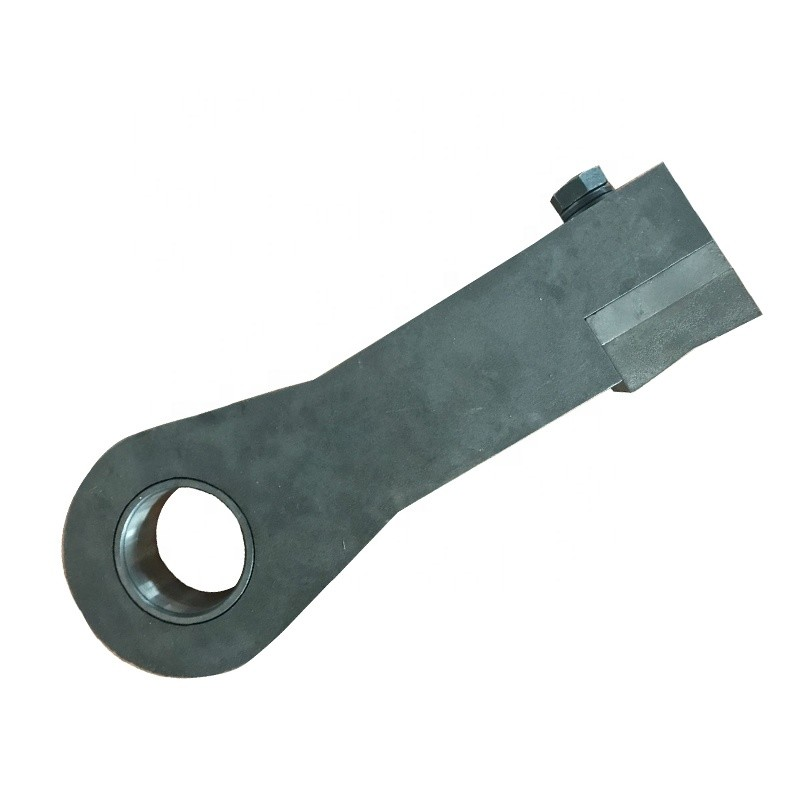

Bonding Strength 350MPa Bimetallic Shredder Hammer Handle For Sugarcane
| Product Description |
The comprehensive range of replaceable hammer tip manufactured by us is known for excellent impact & abrasion resistance properties & enhanced service life. These are bi-metallic composites having 700 bhn hardness and are bolted to the hammer shank using high tensile bolt. our range of hammer tips is available in various standard & custom-built sizes.
Material
This Bi-metallic wear resistant product, as a combination of high Chromium cast iron (ASTM A532 15/3CrMo, 700BHN - 63HRc) metallurgically bonded to a mild steel backing plate, obtains both very high abrasion resistance and weldability.
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| H175 | 1 | 75x75x45 | 75 | 75 | 25 | 20 | 45 | 2 |
| H180 | 1 | 80x56x45 | 80 | 56 | 25 | 20 | 45 | 1.6 |
| H181 | 1 | 80x80x45 | 80 | 80 | 25 | 20 | 45 | 2.4 |
| H190 | 1 | 90x50x45 | 90 | 50 | 25 | 20 | 45 | 1.6 |
| H191 | 1 | 90x90x45 | 90 | 90 | 25 | 20 | 45 | 2.9 |
| H100 | 1 | 100x100x45 | 100 | 100 | 25 | 20 | 45 | 3.6 |
| H280 | 2 | 80x56x55 | 80 | 56 | 35 | 20 | 55 | 1.9 |
| H290 | 2 | 90x90x55 | 90 | 90 | 35 | 20 | 55 | 3.1 |
| H291 | 2 | 90x50x55 | 90 | 50 | 35 | 20 | 55 | 1.8 |
| H380 | 3 | 80x56x50 | 80 | 56 | 30 | 20 | 50 | 1.9 |
| H390 | 3 | 90x90x50 | 90 | 90 | 30 | 20 | 50 | 3.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
| PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|  |
 | |
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
| |
