Place of Origin: | Hunan, China |
---|---|
Brand Name: | VIBO, Domite, OEM |
Certification: | ASTM |
Model Number: | V top hammer tips |
Minimum Order Quantity: | 500 Kilogram/Kilograms |
Price: | $4.00 - $12.00 / Kilogram |
Packaging Details: | Polywood crates, polywood pallets, ware-proof film |
Supply Ability: | 100 Ton/Tons per Month |
Type: | Hammer Tips | Machine Type: | Shredder, Crusher |
---|---|---|---|
Material: | Chromium | Processing Type: | Casting |
Use: | Sugar Industry, Coal Mining | Hardness: | 63HRC/700BHN |
Shearing Strength: | 210Mpa Min | Impact Toughness: | Up To 150J/cm2 |
Color: | Metallic | Port: | SHANGHAI ,SHENZHEN ,NINGBO |
Highlight: | 90x90x55mm Grinder Hammer Tips,3.1kgs Grinder Hammer Tips,700BHN Grinder Hammer Tips |

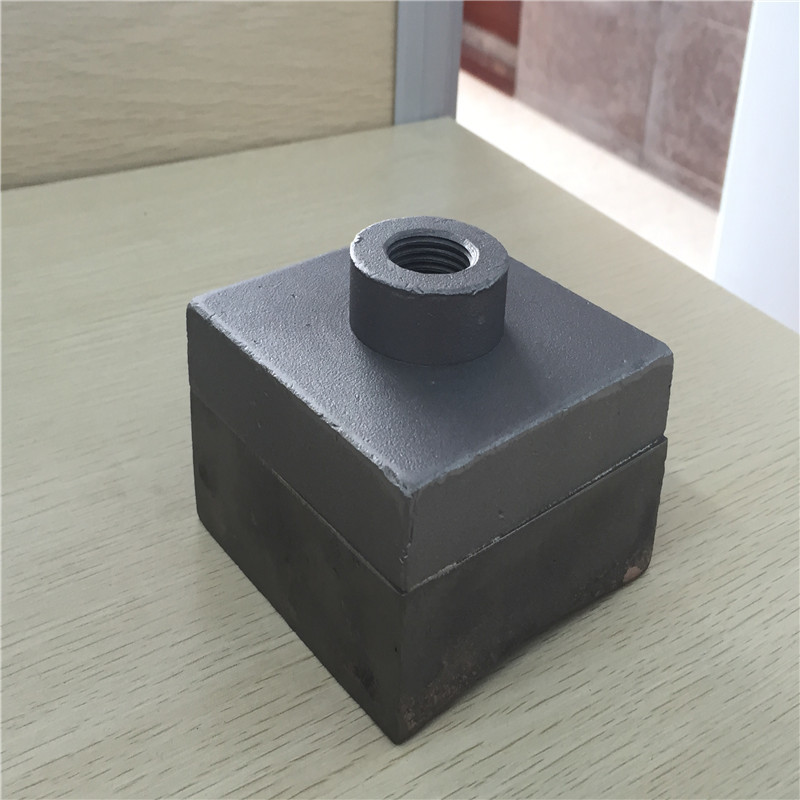

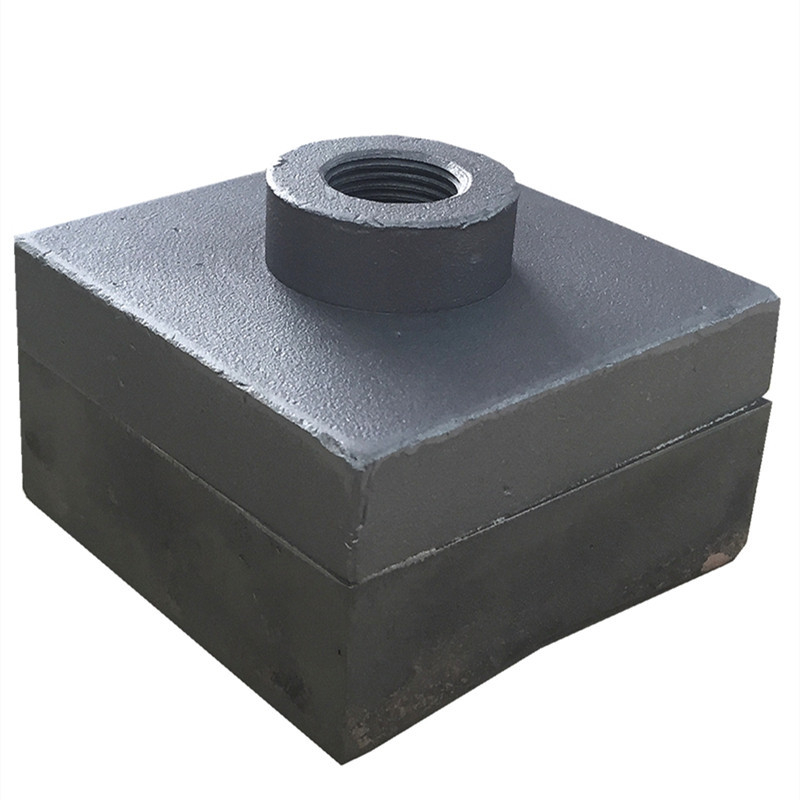

90x90x55mm 3.1kgs Bi Metal 63HRC / 700BHN Grinder Hammer Tips
Product Description |
Available in various type, Shredder Hammer Tips are widely used in sugar cane shredding and coal crusher. They have sharp edges at the start of use that retain their sharpness and cutting efficiency longer than conventional hard facing.
Applications
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
H175 | 1 | 75x75x45 | 75 | 75 | 25 | 20 | 45 | 2 |
H180 | 1 | 80x56x45 | 80 | 56 | 25 | 20 | 45 | 1.6 |
H181 | 1 | 80x80x45 | 80 | 80 | 25 | 20 | 45 | 2.4 |
H190 | 1 | 90x50x45 | 90 | 50 | 25 | 20 | 45 | 1.6 |
H191 | 1 | 90x90x45 | 90 | 90 | 25 | 20 | 45 | 2.9 |
H100 | 1 | 100x100x45 | 100 | 100 | 25 | 20 | 45 | 3.6 |
H280 | 2 | 80x56x55 | 80 | 56 | 35 | 20 | 55 | 1.9 |
H290 | 2 | 90x90x55 | 90 | 90 | 35 | 20 | 55 | 3.1 |
H291 | 2 | 90x50x55 | 90 | 50 | 35 | 20 | 55 | 1.8 |
H380 | 3 | 80x56x50 | 80 | 56 | 30 | 20 | 50 | 1.9 |
H390 | 3 | 90x90x50 | 90 | 90 | 30 | 20 | 50 | 3.3 |
Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
