Place of Origin: | China |
---|---|
Brand Name: | OEM, GET |
Certification: | ASTM |
Model Number: | WDB75 |
Minimum Order Quantity: | 500 Kilogram/Kilograms |
Price: | $4.00 - $6.00 / Kilogram |
Packaging Details: | Polywood crates, polywood pallets, anti-rust film Wear buttons white iron &casting parts for protection of mining machines Domite WB75 |
Supply Ability: | 300 Ton/Tons per Month |
Condition: | New | Warranty: | Unavailable |
---|---|---|---|
Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Type: | Wear Buttons Wear Donuts |
Machine Type: | Crusher ,excavator, Bucket | Material: | Chromium |
Processing Type: | Casting | Use: | Ore Mining |
Hardness: | 63HRC | Shearing Strength: | 210Mpa Min |
Impact Toughness: | Up To 150J/cm2 | Weight: | 0.9kgs |
Size: | φ75x27mm | ||
Highlight: | 75x27mm Wear Buttons,0.9kgs Wear Buttons,150J/cm2 Wear Buttons |

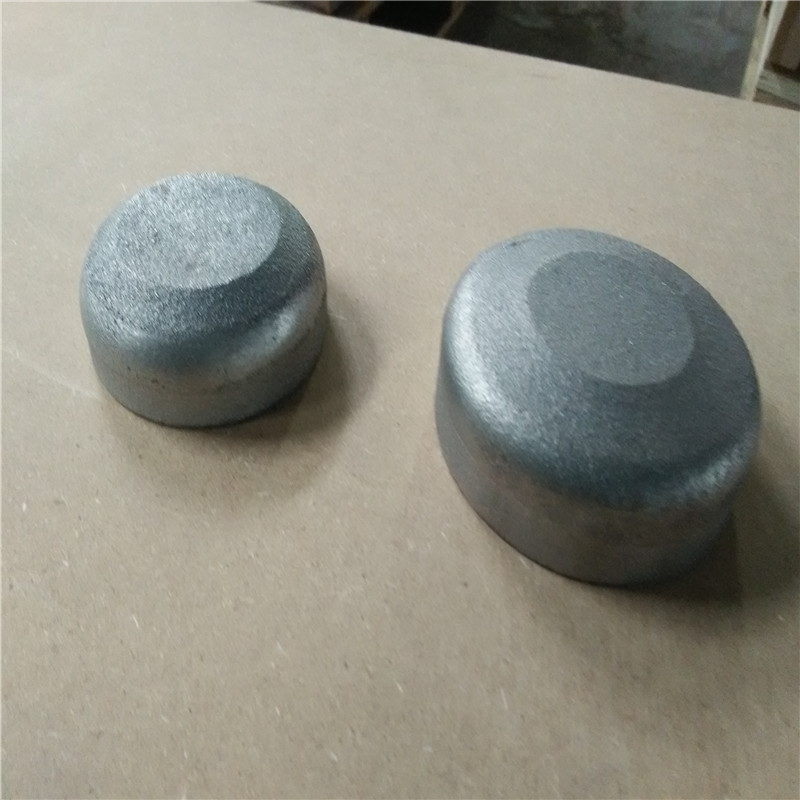

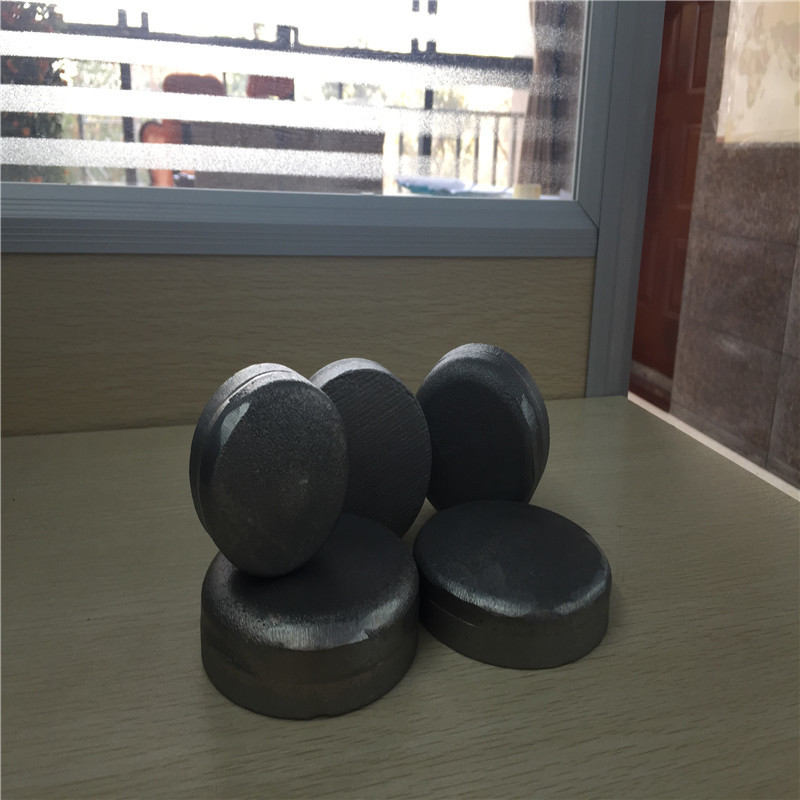

75x27mm Wear Buttons
Product Description |
Description
These buttons are available in a range of sizes and are excellent for protecting areas of plant and equipment experiencing localised wear and tear. The Chrome Moly white iron is also braised to a mild steel backing plate for easy welding.
Perfect alternative to expensive, labour intensive hard facing. Light weight and easy to handle, ideal for in situ repairs.
Applications:
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
WDB60 | Dome Buttons | φ60x27 | 60 | 27 | 17 | 10 | 0.7 | |
WDB75 | Dome Buttons | φ75x27 | 75 | 27 | 17 | 10 | 0.9 | |
WDB90 | Dome Buttons | φ90x27 | 90 | 27 | 17 | 10 | 1.2 | |
WDB115 | Dome Buttons | φ115x32 | 115 | 32 | 20 | 12 | 2.6 | |
WDB150 | Dome Buttons | φ150x41 | 150 | 41 | 25 | 16 | 5.7 | |
WFB60 | Flat Buttons | φ60x27 | 60 | 17 | 10 | 27 | 0.7 | |
WFB75 | Flat Buttons | φ75x27 | 75 | 17 | 10 | 27 | 0.9 | |
WFB90 | Flat Buttons | φ90x27 | 90 | 17 | 10 | 27 | 1.2 | |
WD75 | Donut | φ75x25 | 75 | 25 | 17 | 8 | 25 | 0.7 |
WD100 | Donut | φ100x25 | 100 | 50 | 17 | 8 | 25 | 1 |
WD101 | Donut | φ100x32 | 100 | 70 | 24 | 8 | 32 | 1 |
WD130 | Donut | φ130x23 | 130 | 80 | 15 | 8 | 23 | 1.3 |

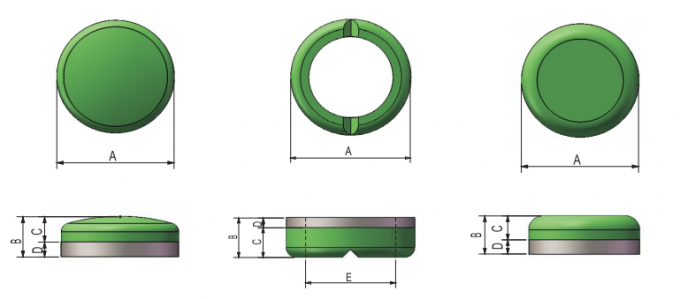

Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
