Place of Origin: | changsha,china |
---|---|
Brand Name: | VIBO |
Certification: | ASTM |
Model Number: | VWP |
Minimum Order Quantity: | 500KG |
Price: | Negotiable |
Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
Delivery Time: | 4 week |
Payment Terms: | L/C, T/T |
Supply Ability: | 200Tos per month |
Condition: | New | Warranty: | Unavailable |
---|---|---|---|
Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Type: | Wear Plates, Wear Liners |
Machine Type: | Hopper, Crusher, Chutes, | Material: | Chromium |
Processing Type: | Casting | Use: | Ore Mining, Oil , Quarry |
HARDNESS: | 63-65HRC | Shearing Strength: | 210Mpa Min |
Impact Toughness: | 150J/cm2 | DENSITY: | 7.8 |
Size: | 300*300*12 | Port: | Shanghai,Shenzhen,Ningbo |
Highlight: | 445*445*25mm Wear Plates,38.9kgs Wear Plates,445*445*25mm wear liner plates |

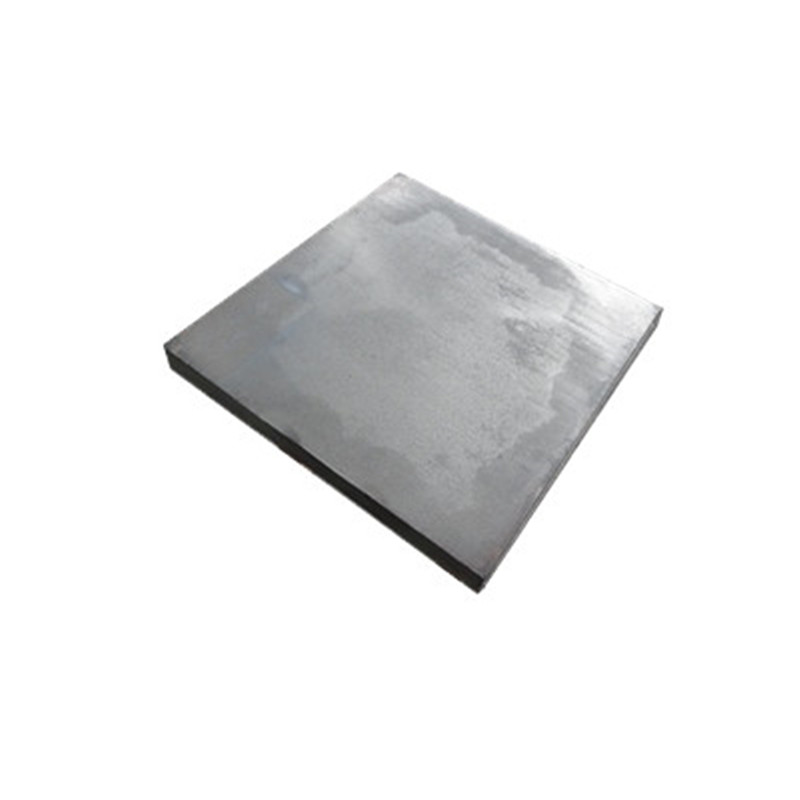

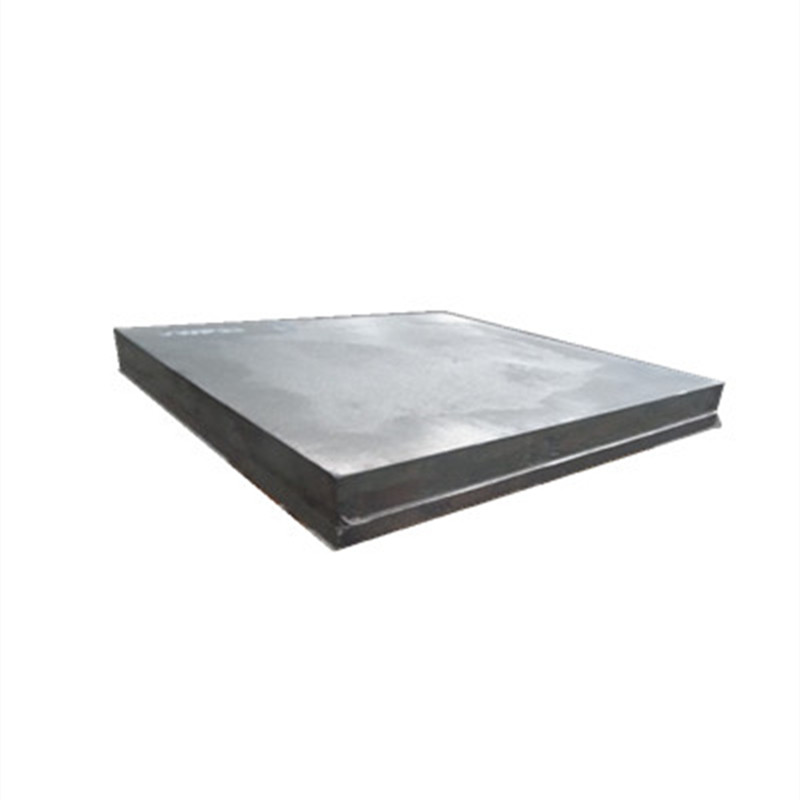

Vibratory Feeders 38.9kgs 445*445*25mm Wear Resistant Plate
Product Description |
Description
Wear plates, also called abrasion resistant plates or steel liners, are used to reduce wear and tear in surfaces with excessive friction and causes degradation between two parts. Usually, these plates are used for machines that slide or rotates during the process. These plates are easy to install, gets the job done, and are a cheaper purchase than replacing the whole part altogether.
Feature
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
VWP11 | 1 | 400*400*23 | 400 | 400 | 15 | 8 | 23 | 28.7 |
VWP21 | 2 | 200*200*20 | 200 | 200 | 10 | 10 | 20 | 6.3 |
VWP22 | 2 | 300*300*18 | 300 | 300 | 12 | 6 | 18 | 12.7 |
VWP31 | 3 | 445*445*25 | 445 | 445 | 19 | 6 | 25 | 38.9 |
VWP32 | 3 | 372*372*28 | 372 | 372 | 20 | 8 | 28 | 30.4 |
VWP33 | 3 | 300*300*30 | 300 | 300 | 20 | 10 | 30 | 21.2 |
VWP34 | 3 | 294*294*30 | 294 | 294 | 20 | 10 | 30 | 20.4 |
VWP35 | 3 | 294*144*30 | 294 | 144 | 20 | 10 | 30 | 10.2 |
VWP36 | 3 | 206*203*58 | 206 | 203 | 38 | 20 | 58 | 19 |
VWP37 | 3 | 301*200*28 | 301 | 200 | 18 | 10 | 28 | 13.2 |
VWP38 | 3 | 305*150*26 | 305 | 150 | 18 | 8 | 26 | 9.3 |
Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
