Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | changsha,china |
|---|---|
| Brand Name: | VIBO |
| Certification: | ASTM |
| Model Number: | VWP |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
| Delivery Time: | 4 week |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200Tos per month |
| Condition: | New | Warranty: | Unavailable |
|---|---|---|---|
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Type: | Wear Plates, Wear Liners |
| Machine Type: | Hopper, Crusher, Chutes, | Material: | Chromium |
| Processing Type: | Casting | Use: | Ore Mining, Oil , Quarry |
| HARDNESS: | 63-65HRC | Shearing Strength: | 210Mpa Min |
| Impact Toughness: | 150J/cm2 | DENSITY: | 7.8 |
| Size: | 300*300*12mm | Port: | Shanghai,Shenzhen,Ningbo |
| High Light: | 300*300*12mm bucket wear plates,65HRC bucket wear plates,150J/Cm2 bucket wear plates |
||

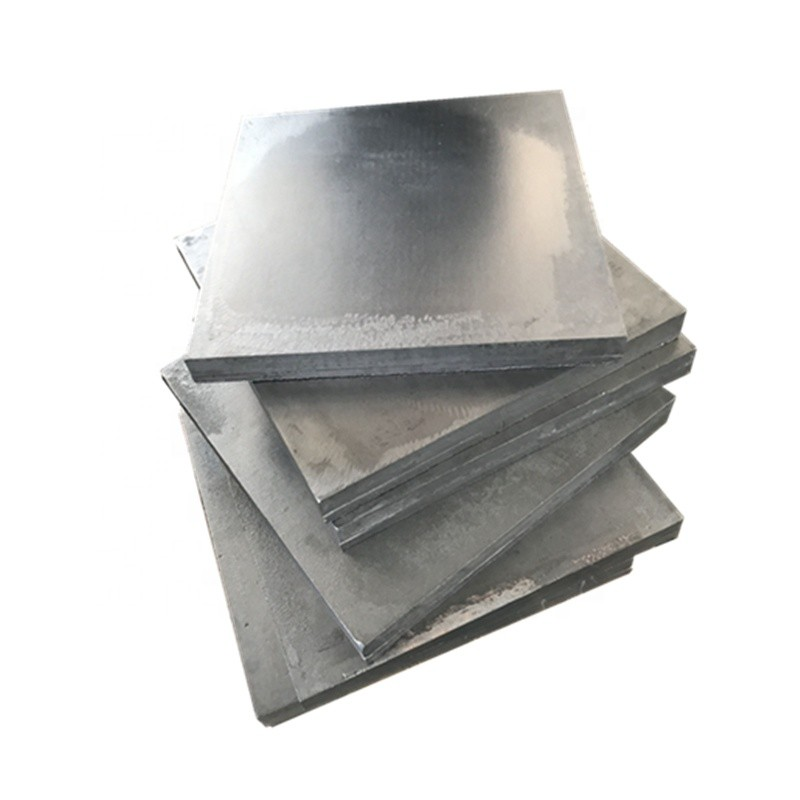

65HRC Hardness 300*300*12mm 150J/Cm2 Bimetallic Bucket Wear Plates
| Product Description |
Description
We specialize in thin and precise abrasion resistant wear steel with singularly tight variance constraints
Our specific approach to strip plates production also means we achieve a more even result at any given target thickness. The durable and load-bearing steel is available in many different grades, all produced for a long life in a tough environment. Standard sizes available. Custom dimensions are available upon request.
Industries
Wear Plates possess unique combination of hardness, toughness, planarity and workability, mainly used in heavy industries such as plant- and earth moving work. The steel is used where durability is needed the most, such as; crushers, buckets, dumper bodies, garbage trucks and other applications that handle hard materials.
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| VWP11 | 1 | 400*400*23 | 400 | 400 | 15 | 8 | 23 | 28.7 |
| VWP21 | 2 | 200*200*20 | 200 | 200 | 10 | 10 | 20 | 6.3 |
| VWP22 | 2 | 300*300*18 | 300 | 300 | 12 | 6 | 18 | 12.7 |
| VWP31 | 3 | 445*445*25 | 445 | 445 | 19 | 6 | 25 | 38.9 |
| VWP32 | 3 | 372*372*28 | 372 | 372 | 20 | 8 | 28 | 30.4 |
| VWP33 | 3 | 300*300*30 | 300 | 300 | 20 | 10 | 30 | 21.2 |
| VWP34 | 3 | 294*294*30 | 294 | 294 | 20 | 10 | 30 | 20.4 |
| VWP35 | 3 | 294*144*30 | 294 | 144 | 20 | 10 | 30 | 10.2 |
| VWP36 | 3 | 206*203*58 | 206 | 203 | 38 | 20 | 58 | 19 |
| VWP37 | 3 | 301*200*28 | 301 | 200 | 18 | 10 | 28 | 13.2 |
| VWP38 | 3 | 305*150*26 | 305 | 150 | 18 | 8 | 26 | 9.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
