Place of Origin: | changsha,china |
---|---|
Brand Name: | VIBO |
Certification: | ASTM |
Model Number: | VWP |
Minimum Order Quantity: | 500KG |
Price: | Negotiable |
Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
Delivery Time: | 4 week |
Payment Terms: | L/C, T/T |
Supply Ability: | 200Tos per month |
Warranty: | 1 YEAR | Applicable Industries: | Energy & Mining |
---|---|---|---|
Local Service Location: | None | Showroom Location: | None |
Type: | Wear Plates, Wear Liners | Machine Type: | Hopper, Crusher, Chutes, |
Material: | Chromium | Processing Type: | Casting |
Use: | Ore Mining, Earth Moving | HARDNESS: | 63-65HRC |
Shearing Strength: | 210Mpa Min | Impact Toughness: | 150J/cm2 |
DENSITY: | 7.8 | ||
Highlight: | 301*200*28mm Wear Plates,13.2kgs Wear Plates,301*200*28mm bimetallic wear plates |

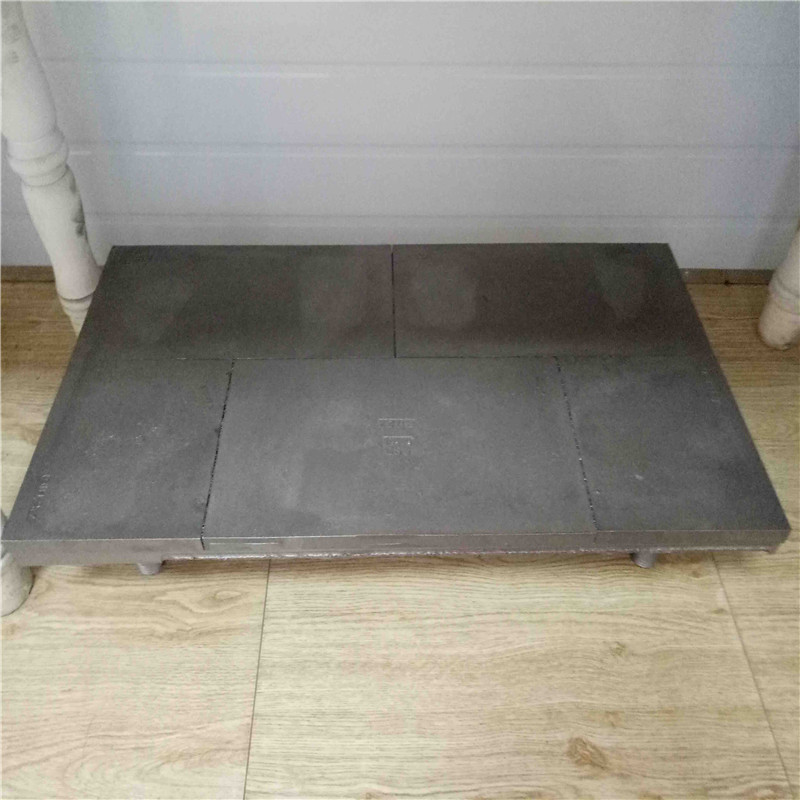

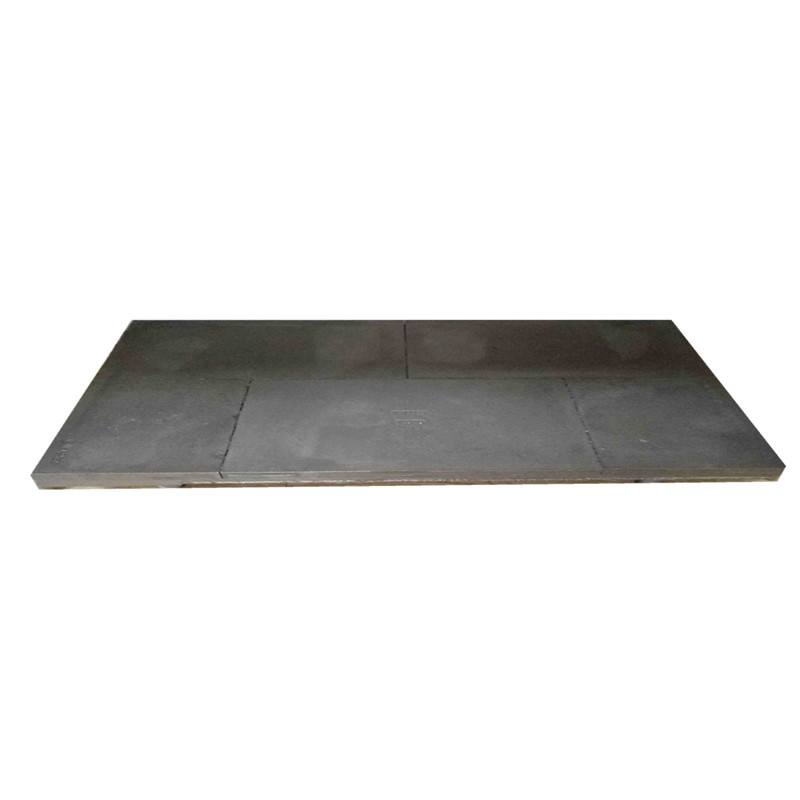

Unit Weight 13.2kgs White Iron 301*200*28mm Wear Resistant Plate
Product Description |
Description
The Wear plate will outlast quenched and tempered steels by up to 12 times and white iron by up to 4 times. It maintains the efficiency of chutes, bins, hoppers, buckets and other material handling equipment because it is quickly polished by abrading materials. This produces a surface with a low coefficient of friction, which lessens the likelihood of hang-ups.
These properties render this product suitable for use under extreme operating conditions where the cost of downtime far outweighs the initial expenditure or the capital outlay of replacement.
Advantages:
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
VWP11 | 1 | 400*400*23 | 400 | 400 | 15 | 8 | 23 | 28.7 |
VWP21 | 2 | 200*200*20 | 200 | 200 | 10 | 10 | 20 | 6.3 |
VWP22 | 2 | 300*300*18 | 300 | 300 | 12 | 6 | 18 | 12.7 |
VWP31 | 3 | 445*445*25 | 445 | 445 | 19 | 6 | 25 | 38.9 |
VWP32 | 3 | 372*372*28 | 372 | 372 | 20 | 8 | 28 | 30.4 |
VWP33 | 3 | 300*300*30 | 300 | 300 | 20 | 10 | 30 | 21.2 |
VWP34 | 3 | 294*294*30 | 294 | 294 | 20 | 10 | 30 | 20.4 |
VWP35 | 3 | 294*144*30 | 294 | 144 | 20 | 10 | 30 | 10.2 |
VWP36 | 3 | 206*203*58 | 206 | 203 | 38 | 20 | 58 | 19 |
VWP37 | 3 | 301*200*28 | 301 | 200 | 18 | 10 | 28 | 13.2 |
VWP38 | 3 | 305*150*26 | 305 | 150 | 18 | 8 | 26 | 9.3 |

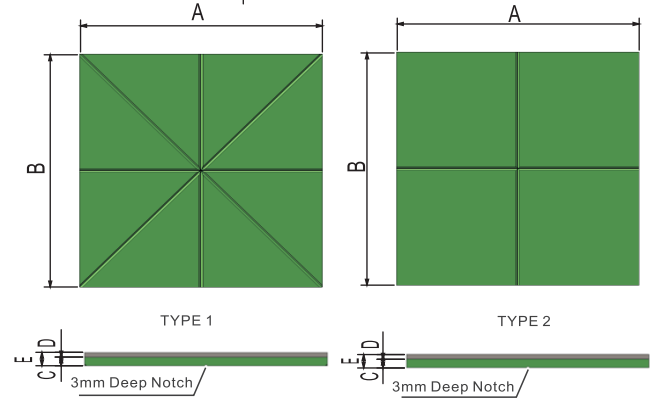

Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
