Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | changsha,china |
|---|---|
| Brand Name: | VIBO |
| Certification: | ASTM |
| Minimum Order Quantity: | 200KG |
| Price: | Negotiable |
| Packaging Details: | Polywood crates, polywood pallets, Anti-rust film |
| Delivery Time: | 4 week |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons per month |
| Applicable Industries: | Food & Beverage Factory, Energy & Mining | Type: | Knife Edges |
|---|---|---|---|
| Machine Type: | Sugar Machine | Material: | High Chromium White Iron |
| Processing Type: | Casting | Use: | Ore Mining & Earthmoving & Agriculture |
| Hardness: | 63HRC | Shearing Strength: | 210Mpa Min |
| Impact Toughness: | Up To 150J/cm2 | Size: | 305x25x50mm |
| High Light: | 305x25x50mm White Iron Knife Edges,63HRC White Iron Knife Edges,305x22x50mm White Iron Knife Edges |
||

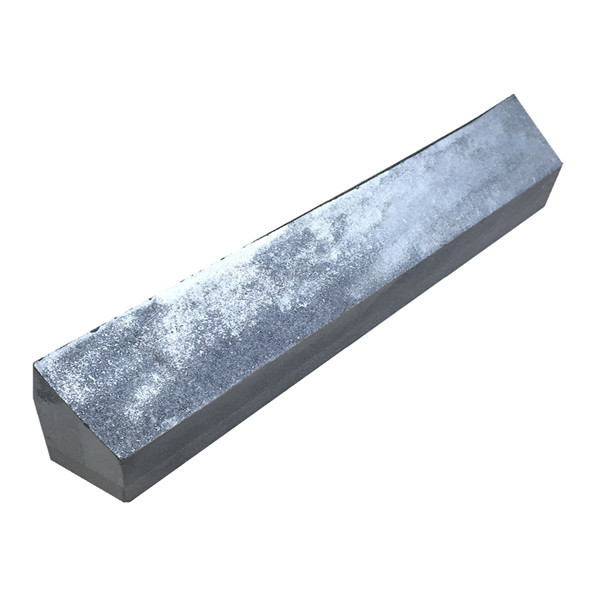

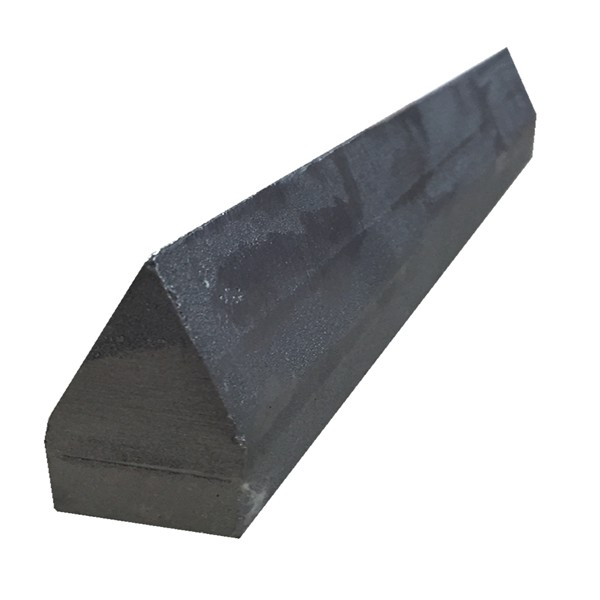

305x25x50mm 305x22x50mm 63HRC Hardness White Iron Knife Edges
| Product Description |
63HRC white iron knife edges for Sugar
Knife Edges are specifically designed for the sugar industry utilising a sharp edge for maximum shredding efficiency.
They are easy to install and maintain,which increase production and shredding efficiency. Maintain sharp edges from the start of use and retain edge sharpness & cutting efficiency longer than hard facing.
Our Strenghth
1. LONG LIFE
High Carbon White Iron with 700 BHN hardness to provide extremely good resistance to severe erosion/gouging/corrosion types of wear.
2. RELIABILITY
Metallurgically bonded to a Tough Ductile Weldable steel plate. Impact will not destroy the integrity of the wear resistant layer..
3. VERSATILITY
Buyers can choose from our complete line of standard product or have a new design completely customized to fit your needs.
4. FLEXIBILITY
Available in Sharp and Blunt Styles
5. EASY INSTALLATION
Weld – with no special rods or preheat requirements. Can be easily welded or any shape of bolt or screw hole can be incorporated.
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| VKE1203-16 | 1 | 203x16x50 | 203 | 16 | 38 | 12 | 50 | 0.9 |
| VKE1203-19 | 1 | 203x19x50 | 203 | 19 | 38 | 12 | 50 | 1.1 |
| VKE1203-22 | 1 | 203x22x50 | 203 | 22 | 38 | 12 | 50 | 1.3 |
| VKE1203-25 | 1 | 203x25x50 | 203 | 25 | 38 | 12 | 50 | 1.5 |
| vKE1305-16 | 1 | 305x16x50 | 305 | 16 | 38 | 12 | 50 | 1.4 |
| VKE1305-19 | 1 | 305x19x50 | 305 | 19 | 38 | 12 | 50 | 1.6 |
| VKE1305-22 | 1 | 305x22x50 | 305 | 22 | 38 | 12 | 50 | 1.9 |
| VKE1305-25 | 1 | 305x25x50 | 305 | 25 | 38 | 12 | 50 | 2.2 |
| VKE2203-16 | 2 | 203x16x50 | 203 | 16 | 38 | 12 | 50 | 1.0 |
| VKE2203-25 | 2 | 203x25x50 | 203 | 25 | 38 | 12 | 50 | 1.7 |
| VKE2305-25 | 2 | 305x25x56 | 305 | 25 | 40 | 16 | 56 | 2.5 |
| VKE3203-19 | 3 | 203x19x50 | 203 | 19 | 38 | 12 | 50 | 1.6 |
| vKE3203-25 | 3 | 203x25x60 | 203 | 25 | 38 | 12 | 50 | 2.1 |
| VKE3203-28 | 3 | 203x28x50 | 203 | 28 | 38 | 12 | 50 | 2.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
