Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | changsha,china |
|---|---|
| Brand Name: | VIBO |
| Certification: | ASTM |
| Minimum Order Quantity: | 200KG |
| Price: | Negotiable |
| Packaging Details: | Parking in sturdy wooden cases or in cardboard cartons |
| Delivery Time: | 4 week |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons per month |
| Applicable Industries: | Energy & Mining | Type: | Knife Edge |
|---|---|---|---|
| Machine Type: | Sugar Company | Material: | CHROMIUM |
| Processing Type: | CASTING | Use: | Ore Mining |
| Hardness: | 63HRC | Shearing Strength: | 250Mpa Min |
| Impact Toughness: | Up To 150J/cm2 | Port: | Shanghai,Ningbo,Shenzhen |
| Highlight: | 203x22x50mm Cane Knife Edges,250Mpa Cane Knife Edges,1.3kgs Cane Knife Edges |
||

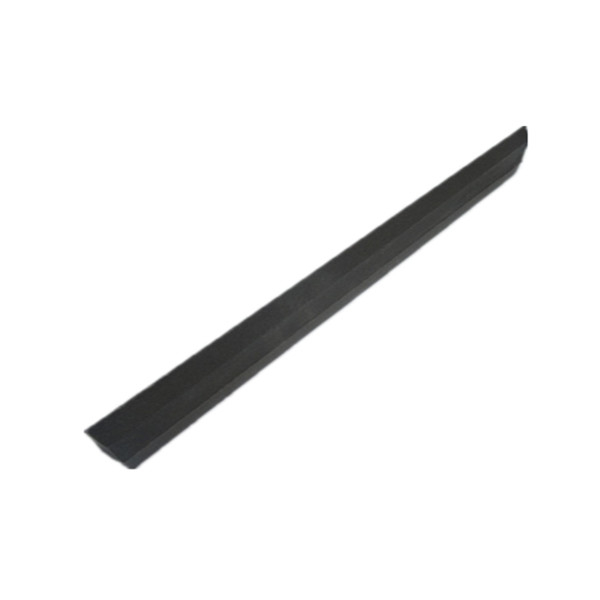

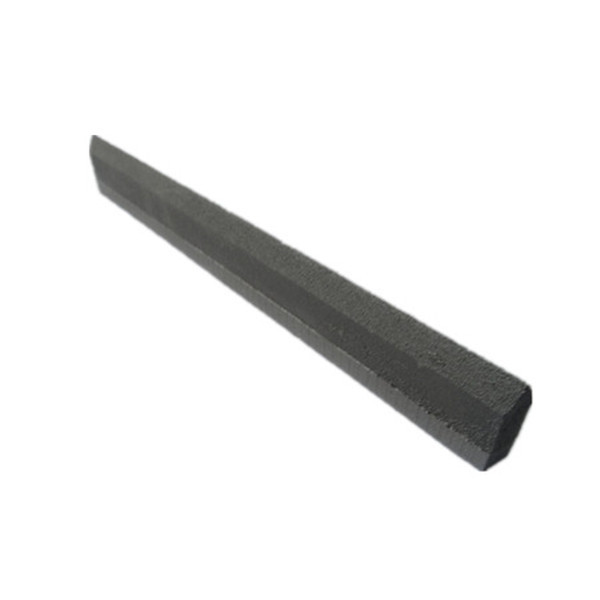

203x22x50mm Shearing Strength 250Mpa Cane Knife Edges
| Product Description |
63HRC white iron knife edges for Sugar
We manufacture cane cutting knives with detachable carbide tips, which are an advancement over the hard-faced knives. Our range of cutting knives for Cane Cutter, Chopper, Leveler etc. Spreads over a large variety of designs/sizes.
1) Cane Knife Edge
Hardness: 63HRC Min /700BHN
Shearing strength: 250Mpa Min
Tensile strength: 630Mpa Min
Main material:
high chrome cast iron(63HRC,wear resistance) + weldable mild steel(impact resistance)
2) Application
Knife edges can be used in sugar or coal industry to do crushing and shredding performance, it has excellent impact and abrasion resistance properties & enhanced service life.
3) We can produce according to your specification and drawings for Knife Edges and other bimetallic wear materials
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| VKE1203-16 | 1 | 203x16x50 | 203 | 16 | 38 | 12 | 50 | 0.9 |
| VKE1203-19 | 1 | 203x19x50 | 203 | 19 | 38 | 12 | 50 | 1.1 |
| VKE1203-22 | 1 | 203x22x50 | 203 | 22 | 38 | 12 | 50 | 1.3 |
| VKE1203-25 | 1 | 203x25x50 | 203 | 25 | 38 | 12 | 50 | 1.5 |
| vKE1305-16 | 1 | 305x16x50 | 305 | 16 | 38 | 12 | 50 | 1.4 |
| VKE1305-19 | 1 | 305x19x50 | 305 | 19 | 38 | 12 | 50 | 1.6 |
| VKE1305-22 | 1 | 305x22x50 | 305 | 22 | 38 | 12 | 50 | 1.9 |
| VKE1305-25 | 1 | 305x25x50 | 305 | 25 | 38 | 12 | 50 | 2.2 |
| VKE2203-16 | 2 | 203x16x50 | 203 | 16 | 38 | 12 | 50 | 1.0 |
| VKE2203-25 | 2 | 203x25x50 | 203 | 25 | 38 | 12 | 50 | 1.7 |
| VKE2305-25 | 2 | 305x25x56 | 305 | 25 | 40 | 16 | 56 | 2.5 |
| VKE3203-19 | 3 | 203x19x50 | 203 | 19 | 38 | 12 | 50 | 1.6 |
| vKE3203-25 | 3 | 203x25x60 | 203 | 25 | 38 | 12 | 50 | 2.1 |
| VKE3203-28 | 3 | 203x28x50 | 203 | 28 | 38 | 12 | 50 | 2.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
| FAQ |
| Q: Are you a trade company or a manufacturer ? |
| A: We are ISO9001:2008 Certificated factory. |
| Q: Can you provide samples ? is it free or extra ? |
| A: Yes, we can provide free samples for customer’s testing. |
| Q: Can I have my logo in your product ? |
| A: Yes, OEM and ODM are available for us. |
| Q: Can I have a visit to your factory before the order ? |
| A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
