Place of Origin: | changsha,china |
---|---|
Brand Name: | VIBO |
Certification: | ASTM |
Minimum Order Quantity: | 200KG |
Price: | Negotiable |

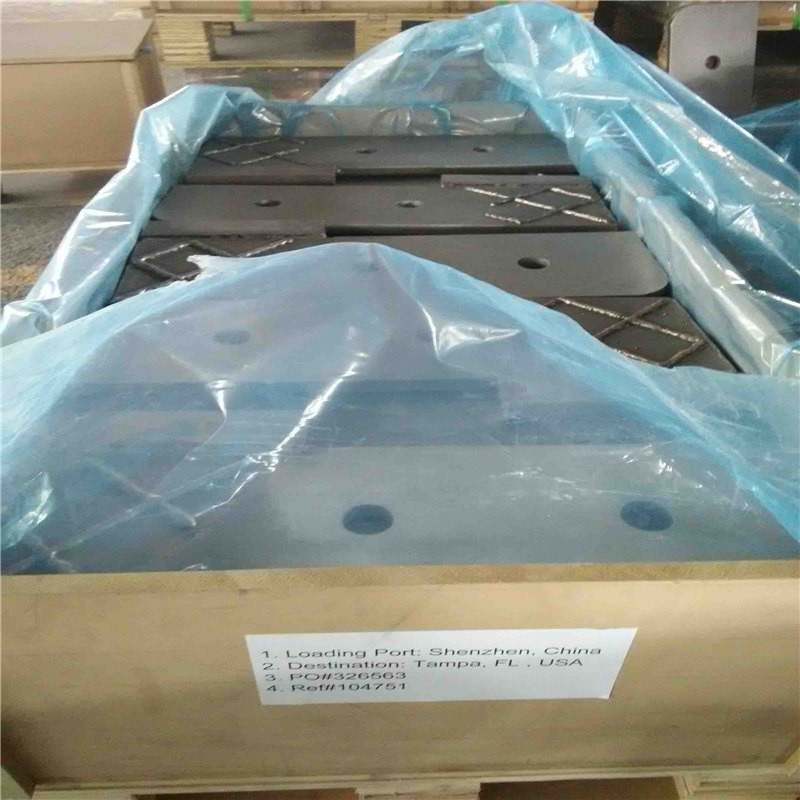

Packaging Details: | Parking in sturdy wooden cases or in cardboard cartons |
Delivery Time: | 4 week |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons per month |
Applicable Industries: | Food & Beverage Factory, Energy & Mining | Type: | Knife Edges |
---|---|---|---|
Machine Type: | Crusher Bucket Sugar | Material: | CHROMIUM |
Processing Type: | CASTING | Use: | Ore Mining |
Product Name: | Knife Edges | Hardness: | 63HRC |
Shearing Strength: | 210Mpa Min | Impact Toughness: | Up To 150J/cm2 |
Highlight: | 203x25x60mm Cane Knife Edges,203x28x50mm Cane Knife Edges,203x28x50mm chromium knife edges |
Wear Resistant 203x25x60mm 203x28x50mm Cane Knife Edges
Product Description |
63HRC white iron knife edges for Sugar
High chromium carbide knife edges, It is also called white iron knife tips
Knife Edge are sharp edge blocks that are cost-effective alternatives to conventional expensive hard facing methods. They have sharp edges that could retain their sharpness and cutting efficiency longer than conventional methods.
63HRC white iron knife edges for Sugar Mill for Sugarcane shredding and Cutting.
Product Features:
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
VKE1203-16 | 1 | 203x16x50 | 203 | 16 | 38 | 12 | 50 | 0.9 |
VKE1203-19 | 1 | 203x19x50 | 203 | 19 | 38 | 12 | 50 | 1.1 |
VKE1203-22 | 1 | 203x22x50 | 203 | 22 | 38 | 12 | 50 | 1.3 |
VKE1203-25 | 1 | 203x25x50 | 203 | 25 | 38 | 12 | 50 | 1.5 |
vKE1305-16 | 1 | 305x16x50 | 305 | 16 | 38 | 12 | 50 | 1.4 |
VKE1305-19 | 1 | 305x19x50 | 305 | 19 | 38 | 12 | 50 | 1.6 |
VKE1305-22 | 1 | 305x22x50 | 305 | 22 | 38 | 12 | 50 | 1.9 |
VKE1305-25 | 1 | 305x25x50 | 305 | 25 | 38 | 12 | 50 | 2.2 |
VKE2203-16 | 2 | 203x16x50 | 203 | 16 | 38 | 12 | 50 | 1.0 |
VKE2203-25 | 2 | 203x25x50 | 203 | 25 | 38 | 12 | 50 | 1.7 |
VKE2305-25 | 2 | 305x25x56 | 305 | 25 | 40 | 16 | 56 | 2.5 |
VKE3203-19 | 3 | 203x19x50 | 203 | 19 | 38 | 12 | 50 | 1.6 |
vKE3203-25 | 3 | 203x25x60 | 203 | 25 | 38 | 12 | 50 | 2.1 |
VKE3203-28 | 3 | 203x28x50 | 203 | 28 | 38 | 12 | 50 | 2.3 |
Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
FAQ |
Q: Are you a trade company or a manufacturer ? |
A: We are ISO9001:2008 Certificated factory. |
Q: Can you provide samples ? is it free or extra ? |
A: Yes, we can provide free samples for customer’s testing. |
Q: Can I have my logo in your product ? |
A: Yes, OEM and ODM are available for us. |
Q: Can I have a visit to your factory before the order ? |
A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
