Place of Origin: | changsha,china |
---|---|
Brand Name: | VIBO |
Certification: | ASTM |
Model Number: | VWP |
Minimum Order Quantity: | 200KG |
Price: | Negotiable |
Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
Delivery Time: | 4 week |
Payment Terms: | L/C, T/T |
Supply Ability: | 200Tons per month |
Condition: | Brand-New | Applicable Industries: | Broken Material Shops, Energy & Mining |
---|---|---|---|
Type: | Wear Plates | Material: | Chromium |
Processing Type: | Casting | Use: | Ore Mining |
HARDNESS: | 63-65HRC | Shearing Strength: | 230Mpa Min |
Port: | Shanghai | ||
Highlight: | Double Hole Lining Plate,Lining Plate 64HRC,Wear Plates 64HRC |

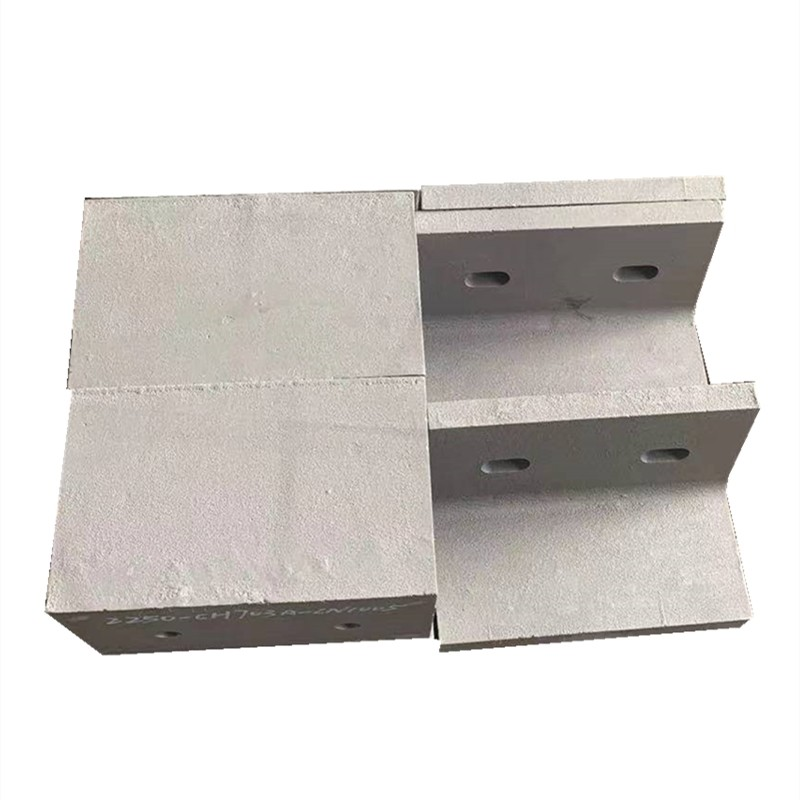

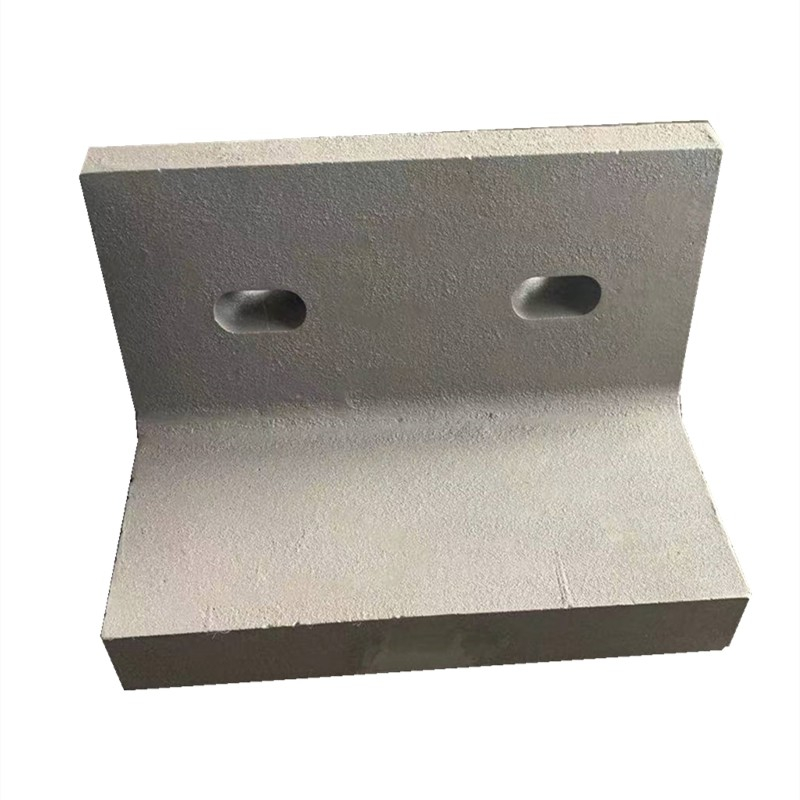

double-hole High chromium bimetallic composite lining plate
Product Description |
Description
A unique abrasion resistant chromium-carbide overlay on a mild steel base plate. It is designed for areas with moderate impact and severe abrasion. This plate can be cut, formed, or rolled. Our unique overlaying process produces a plate with a surface that is harder, tougher, and more wear resistant than plate made by any other process.
Our Wear plate is ideal for extreme wear applications, high temperature environments, and corrosive problems. They are not only resistant to wear, but also provide a high level of impact resistance.
Features and Benefits:
pictures
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
VWP11 | 1 | 400*400*23 | 400 | 400 | 15 | 8 | 23 | 28.7 |
VWP21 | 2 | 200*200*20 | 200 | 200 | 10 | 10 | 20 | 6.3 |
VWP22 | 2 | 300*300*18 | 300 | 300 | 12 | 6 | 18 | 12.7 |
VWP31 | 3 | 445*445*25 | 445 | 445 | 19 | 6 | 25 | 38.9 |
VWP32 | 3 | 372*372*28 | 372 | 372 | 20 | 8 | 28 | 30.4 |
VWP33 | 3 | 300*300*30 | 300 | 300 | 20 | 10 | 30 | 21.2 |
VWP34 | 3 | 294*294*30 | 294 | 294 | 20 | 10 | 30 | 20.4 |
VWP35 | 3 | 294*144*30 | 294 | 144 | 20 | 10 | 30 | 10.2 |
VWP36 | 3 | 206*203*58 | 206 | 203 | 38 | 20 | 58 | 19 |
VWP37 | 3 | 301*200*28 | 301 | 200 | 18 | 10 | 28 | 13.2 |
VWP38 | 3 | 305*150*26 | 305 | 150 | 18 | 8 | 26 | 9.3 |
Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
FAQ |
Q: Are you a trade company or a manufacturer ? |
A: We are ISO9001:2008 Certificated factory. |
Q: Can you provide samples ? is it free or extra ? |
A: Yes, we can provide free samples for customer’s testing. |
Q: Can I have my logo in your product ? |
A: Yes, OEM and ODM are available for us. |
Q: Can I have a visit to your factory before the order ? |
A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
