Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | Hunan, China |
|---|---|
| Brand Name: | VIBO,OEM |
| Certification: | ASTM |
| Model Number: | H390 |
| Minimum Order Quantity: | 500 Kilogram/Kilograms |
| Price: | 4.5USD / Kilogram |
| Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
| Supply Ability: | 100 Ton/Tons per Month |
| Applicable Industries: | Food & Beverage Cane Factory | Type: | Hammer Tips |
|---|---|---|---|
| Machine Type: | Crusher,shredder | Material: | Chromium |
| Processing Type: | Casting | Use: | Sugar Industry &Coal Mining & Earthmoving |
| Hardness: | 63HRC | Shearing Strength: | 210Mpa Min |
| Impact Toughness: | Up To 150J/cm^2 | Color: | Metallic |
| Size: | 90*90*55mm | ||
| High Light: | Type 3 Shredder Hammer Tips,HRC63 Shredder Hammer Tips,Chromium Shredder Hammer Tips |
||

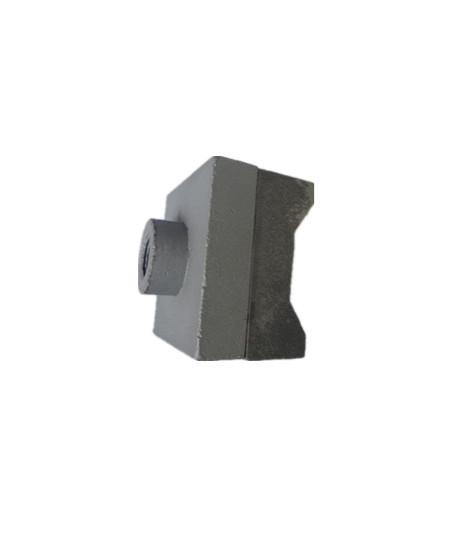

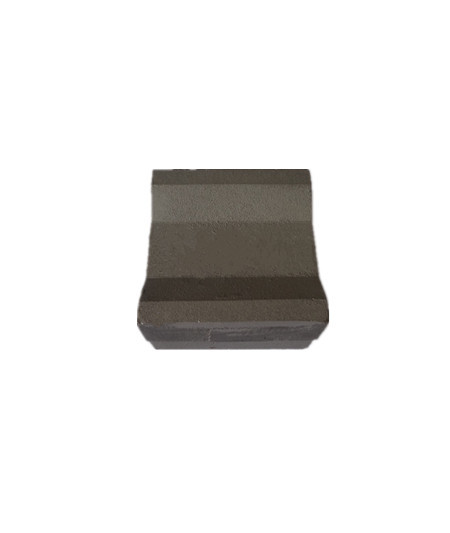

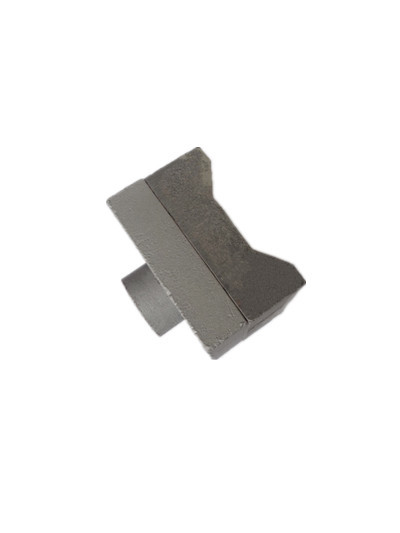

type3 90*90*50mm HRC63 sugar industry Shredder Hammer Tips
| Product Description |
Available in various type, Shredder Hammer Tips are widely used in sugar cane shredding and coal crusher. They have sharp edges at the start of use that retain their sharpness and cutting efficiency longer than conventional hard facing.
Hammer tips are the most cost effective alternative to expensive, labor-intensive hard facing methods and are easy to install and maintain.
These hammer tips find application in
1) Sugar Industry
2) Mining & Mineral Processing Industry.
3) Cement & Steel Industry
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| H175 | 1 | 75x75x45 | 75 | 75 | 25 | 20 | 45 | 2 |
| H180 | 1 | 80x56x45 | 80 | 56 | 25 | 20 | 45 | 1.6 |
| H181 | 1 | 80x80x45 | 80 | 80 | 25 | 20 | 45 | 2.4 |
| H190 | 1 | 90x50x45 | 90 | 50 | 25 | 20 | 45 | 1.6 |
| H191 | 1 | 90x90x45 | 90 | 90 | 25 | 20 | 45 | 2.9 |
| H100 | 1 | 100x100x45 | 100 | 100 | 25 | 20 | 45 | 3.6 |
| H280 | 2 | 80x56x55 | 80 | 56 | 35 | 20 | 55 | 1.9 |
| H290 | 2 | 90x90x55 | 90 | 90 | 35 | 20 | 55 | 3.1 |
| H291 | 2 | 90x50x55 | 90 | 50 | 35 | 20 | 55 | 1.8 |
| H380 | 3 | 80x56x50 | 80 | 56 | 30 | 20 | 50 | 1.9 |
| H390 | 3 | 90x90x50 | 90 | 90 | 30 | 20 | 50 | 3.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
| FAQ |
| Q: Are you a trade company or a manufacturer ? |
| A: We are ISO9001:2008 Certificated factory. |
| Q: Can you provide samples ? is it free or extra ? |
| A: Yes, we can provide free samples for customer’s testing. |
| Q: Can I have my logo in your product ? |
| A: Yes, OEM and ODM are available for us. |
| Q: Can I have a visit to your factory before the order ? |
| A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
