About Chrome Molybdenum billets
Chrome Molybdenum(CrMo) is a well-established white iron product alloyed with Molybdenum and chromium to give significant abrasion and impact resistant properties. Hardness is more than 650HB.

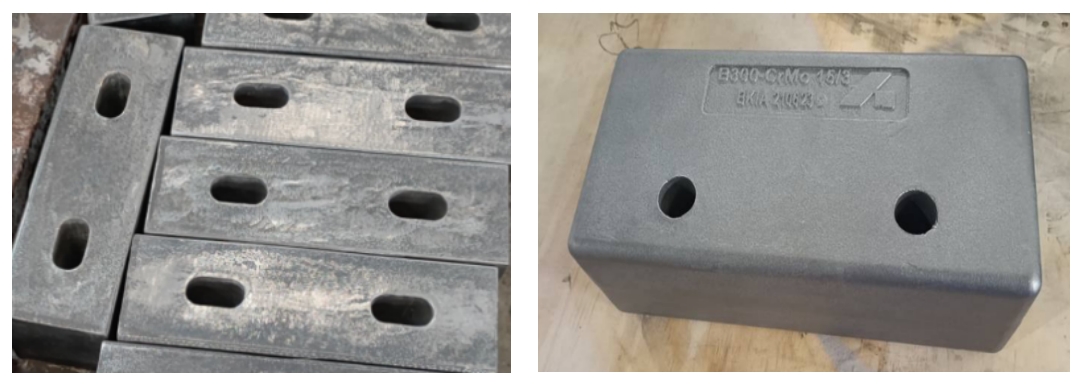

VIBO CrMo billets can be made to the customers specification or supplied from our range of stock sizes.VIBO’s CrMo billets can be custom designed to meet any situation regardless of any size and shape concerns. CrMo billet is the perfect material for chutes, drop boxes, bin and hopper liners.
Standard Dimensions & Weights
Item# | Type | Dimension(mm) | Hole type | unit weight | |||||
A | B | C | D | E | G | Net weight(kg) | |||

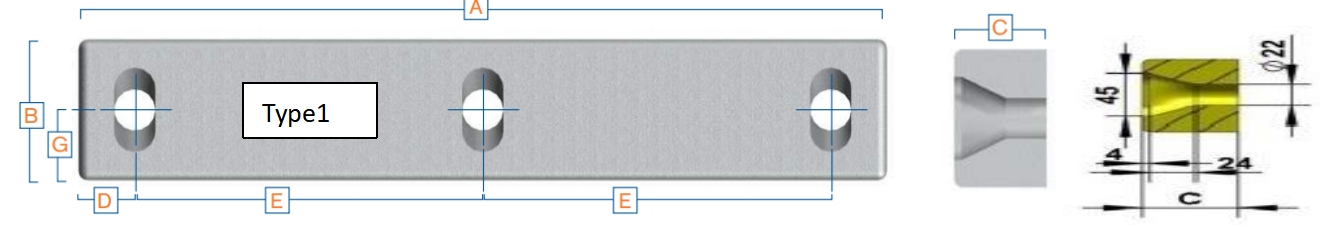

VB128 | 1 | 128 | 75 | 50 | 30 | 68 | 37.5 | M20 fishtail bolts | 3 |
VB210 | 1 | 210 | 75 | 50 | 30 | 150 | 37.5 | 6 | |
VB432 | 1 | 432 | 75 | 50 | 30 | 186 | 37.5 | 12 | |

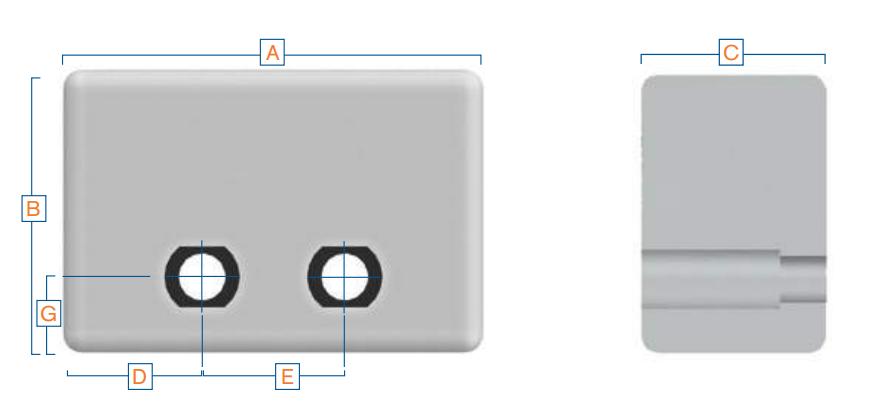

B224-C | 2 | 224 | 150 | 100 | 74 | 186 | 40 | M20 Bolt Hex Head | 25 |
B300-C | 2 | 300 | 150 | 100 | 74 | 152 | 40 | 33 | |

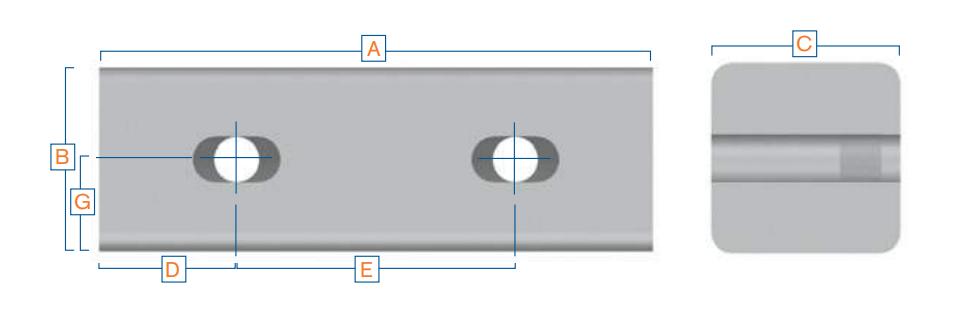

WB1-C | 3 | 302 | 100 | 100 | 75 | 152 | 50 | M22 fishtail bolts | 22 |
WB2-C | 3 | 454 | 100 | 100 | 75 | 304 | 50 | 34 |
