About Chrome Molybdenum liners
Chrome Molybdenum(CrMo) is a well-established white iron product alloyed with Molybdenum and chromium to give significant abrasion and impact resistant properties. Hardness is more than 650HB.
CrMo liners can be made to the customers specification or supplied from our range of stock sizes.VIBO’s CrMo liners can be custom designed to meet any situation regardless of any size and shape concerns. CrMo liners is the perfect material for chutes, drop boxes, bin and hopper liners.

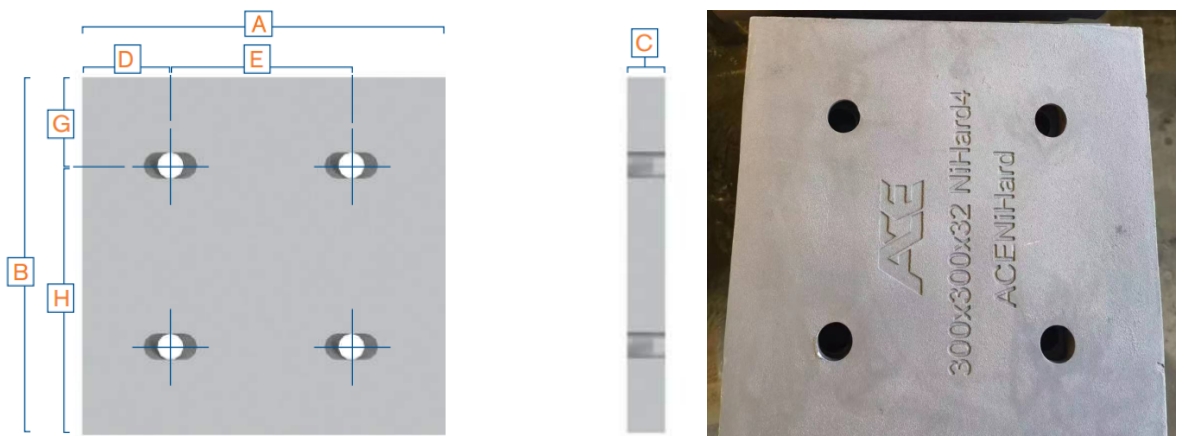

Standard Dimensions & Weights
Item# | Dimensions (mm) | Unit weight(kg) | ||||||
Part# | A | B | C | D | E | G | H | |
L1CrMO | 444 | 444 | 32 | 70 | 304 | 70 | 304 | 50 |
L2 CrMO | 444 | 216 | 32 | 70 | 304 | 70 | - | 24 |
L3CrMO | 444 | 292 | 32 | 70 | 304 | 70 | 152 | 33 |
L4CrMO | 444 | 140 | 32 | 70 | 304 | 70 | - | 16 |
L6CrMO | 292 | 140 | 32 | 70 | 152 | 70 | - | 10 |
L18CrMO | 292 | 292 | 32 | 70 | 152 | 70 | 152 | 22 |
L3WCrMO | 452 | 300 | 32 | 74 | 304 | 74 | 152 | 34 |
L4WCrMO | 452 | 148 | 32 | 74 | 304 | 74 | - | 17 |
L18WCrMO | 300 | 300 | 32 | 74 | 152 | 74 | 152 | 23 |
L6WCrMO | 300 | 148 | 32 | 74 | 152 | 74 | - | 11 |
L2WCrMO | 452 | 224 | 32 | 74 | 304 | 74 | - | 26 |
Bolts can be M20 or M22

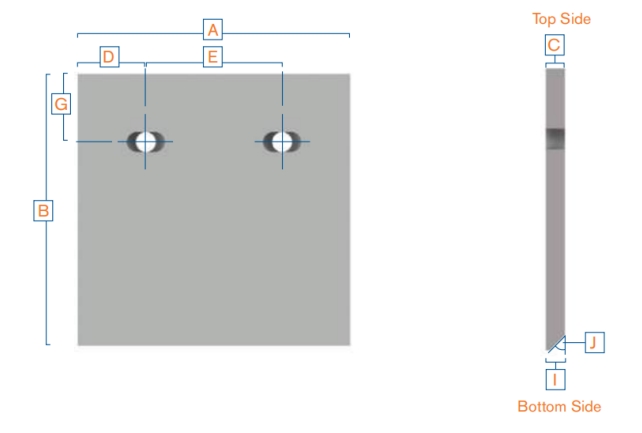

CrMo skirt-liners
Standard Dimensions & Weights
Item# | Hole type | Dimension (mm) | Unit weight(kg) | |||||||||
Part#型号 | A | B | C | D | E | F | G | H | I | JO | ||
SL1CrMO | M22 | 444 | 292 | 32 | 70 | 304 | 70 | 16 | 45 Y | 32 | ||
SL1WCrMo | M22 | 452 | 296 | 32 | 74 | 304 | - | 74 | - | 16 | 45 Y | 33 |
SL18WCrMo | M22 | 300 | 300 | 32 | 74 | 152 | - | 60 | - | 16 | 45 Y | 22 |
SL3W CrMo | M22 | 300 | 224 | 32 | 74 | 152 | - | 60 | - | 16 | 45 Y | 17 |
Chamfer location - Y indicates bottom side; B indicates both top and bottom sides.
