Place of Origin: | Hunan, China |
---|---|
Brand Name: | Domite, OEM |
Certification: | ASTM |
Model Number: | DLP125/ VLB450 |
Minimum Order Quantity: | 500 Kilogram/Kilograms |
Price: | $4.00 - $10.00 / Kilogram |
Packaging Details: | Polywood crates, polywood pallets, Anti-rust film |
Supply Ability: | 100 Ton/Tons per Month |
Type: | Elbow Wear Bars | Machine Type: | Chutes, Hoppers,micro-ledges, Excavator, Crusher |
---|---|---|---|
Material: | Chromium | Processing Type: | Casting |
Use: | Ore Mining | HARDNESS: | 700 HBN |
Shearing Strength: | 210Mpa Min | Impact Toughness: | 150J/cm2 |
Size: | 230x50x50mm | Port: | Shanghai,Shenzhen,Ningbo |
High Light: | 700BHN Wear Blocks,230x50x50mm Wear Blocks,4.5kgs Wear Blocks |
700BHN Wear Blocks
Product Description |
Laminated Wear Blocks

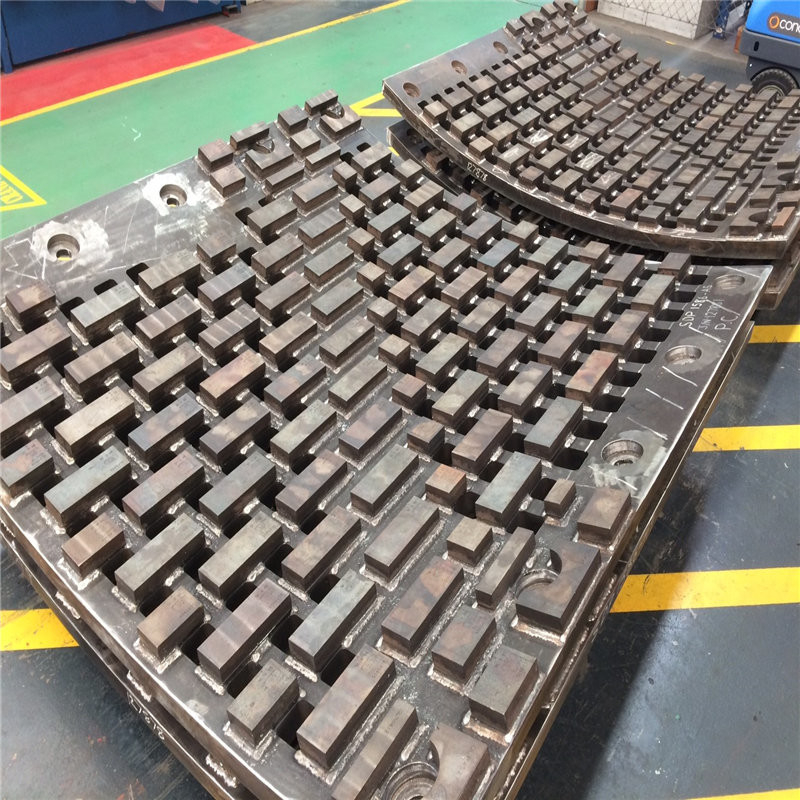

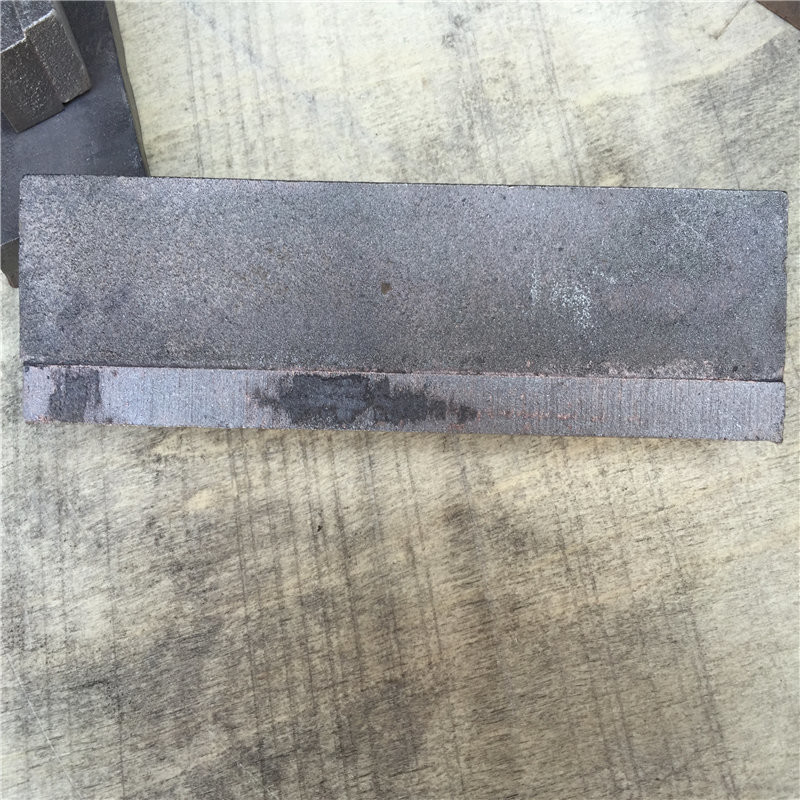

Laminated wear blocks are unique and excellent, in that they have extremely wear-resistant quality and they are weldable, this material is a combination of high chrome white iron metallurgically bonded to a mild steel backing plate through a vacuum brazing process, the high chromium white iron has an extremely high hardness of brinell 700HB (63HRC) and mild steel backing plate makes them weldable and good impact resistance. Typical products including chocky bar, wear button, wear strips, wear plate, shredder hammer tips and much more other wear blocks, they are available both in standard shapes and also customized sizes.
Applications:
Laminated wear blocks are extensively used for wear protection in Mining industry, Quarry industry, Cement industry, Dredging industry, Recycling industry and etc, Typical applications including but not limited to:
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
VLB100 | STD | 200x25x25 | 200 | 25 | 15 | 10 | 25 | 1.0 |
VLB150 | STD | 300x25x25 | 300 | 25 | 15 | 10 | 25 | 1.5 |
VLB110 | STD | 195x25x30 | 195 | 25 | 20 | 10 | 30 | 1.1 |
VLB420 | STD | 459x38x31 | 459 | 38 | 25 | 6 | 31 | 4.2 |
VLB153 | STD | 153x38x33 | 153 | 38 | 25 | 8 | 33 | 1.5 |
VLB300 | STD | 300x38x33 | 300 | 38 | 25 | 8 | 33 | 3.0 |
VLB090 | STD | 102x33x33 | 102 | 33 | 25 | 8 | 33 | 0.9 |
VLB220 | STD | 190x50x30 | 190 | 50 | 20 | 10 | 30 | 2.2 |
VLB290 | STD | 150x50x50 | 150 | 50 | 40 | 10 | 50 | 2.9 |
VLB410 | STD | 210x50x50 | 210 | 50 | 38 | 12 | 50 | 4.1 |
VLB450 | STD | 230x50x50 | 230 | 50 | 38 | 12 | 50 | 4.5 |
VLB500 | STD | 254x50x50 | 254 | 50 | 40 | 10 | 50 | 5.0 |
VLB580 | STD | 294x50x50 | 294 | 50 | 40 | 10 | 50 | 5.7 |
VLB850 | STD | 432x50x50 | 432 | 50 | 38 | 12 | 50 | 8.5 |
VLB1180 | STD | 600x50x50 | 600 | 50 | 38 | 12 | 50 | 11.8 |
VLB540 | STD | 230x50x60 | 230 | 50 | 40 | 20 | 60 | 5.4 |
VLB160 | STD | 203x51x20 | 203 | 51 | 12 | 8 | 20 | 1.6 |
VLB200 | STD | 254x51x20 | 254 | 51 | 12 | 8 | 20 | 2.0 |
VLB244 | STD | 127x51x48 | 127 | 51 | 38 | 10 | 48 | 2.4 |
VLB240 | STD | 250x60x20 | 250 | 60 | 12 | 8 | 20 | 2.4 |
VLB340 | STD | 150x75x39 | 150 | 75 | 29 | 10 | 39 | 3.4 |
VLB440 | STD | 150x75x50 | 150 | 75 | 40 | 10 | 50 | 4.4 |
VLB530 | STD | 150x75x60 | 150 | 75 | 50 | 10 | 60 | 5.3 |
VLB890 | STD | 200x75x75 | 200 | 75 | 63 | 12 | 75 | 8.8 |
VLB610 | STD | 194x80x50 | 194 | 80 | 38 | 12 | 50 | 6.1 |
VLB920 | STD | 294x80x50 | 294 | 80 | 38 | 12 | 50 | 9.2 |
VLB1100 | STD | 241x100x58 | 241 | 100 | 38 | 20 | 58 | 11 |
VLB2110 | STD | 300x150x60 | 300 | 150 | 48 | 12 | 60 | 21 |
Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
