Place of Origin: | Hunan, China |
---|---|
Brand Name: | Domite, OEM,VIBO |
Certification: | ASTM |
Minimum Order Quantity: | 500 Kilogram/Kilograms |
Price: | $4.00 - $10.00 / Kilogram |
Packaging Details: | Polywood crates, polywood pallets, Anti-rust film |
Supply Ability: | 100 Ton/Tons per Month |
Type: | Standard Wear Bars | Machine Type: | Chutes, Hoppers,micro-ledges, Excavator, Crusher |
---|---|---|---|
Material: | Chromium | Processing Type: | Casting |
Use: | Ore Mining | HARDNESS: | 700 BHN |
Shearing Strength: | 210Mpa Min | Impact Toughness: | 150J/cm2 |
Size: | 102x33x33mm | Port: | Shanghai,Shenzhen,Ningbo |
Highlight: | 102x33x33mm Wear Blocks,0.9kgs Wear Blocks,33mm Wear Blocks |

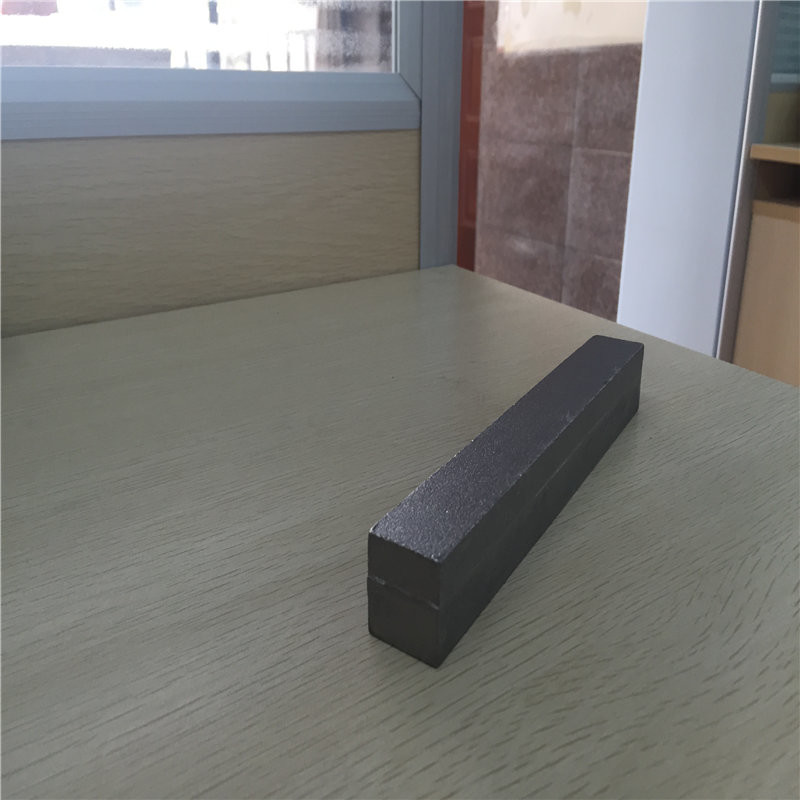

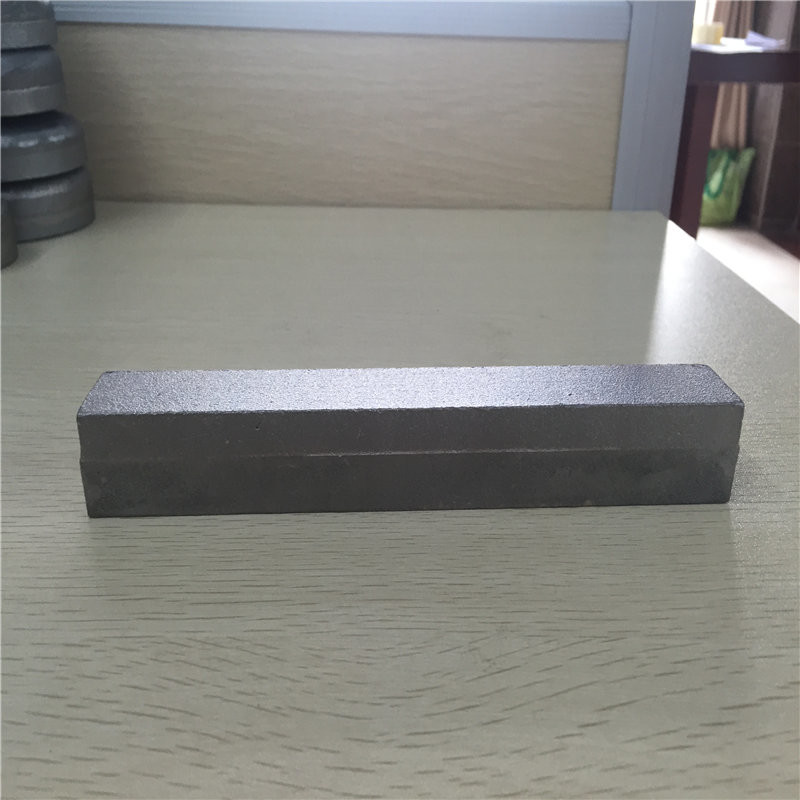

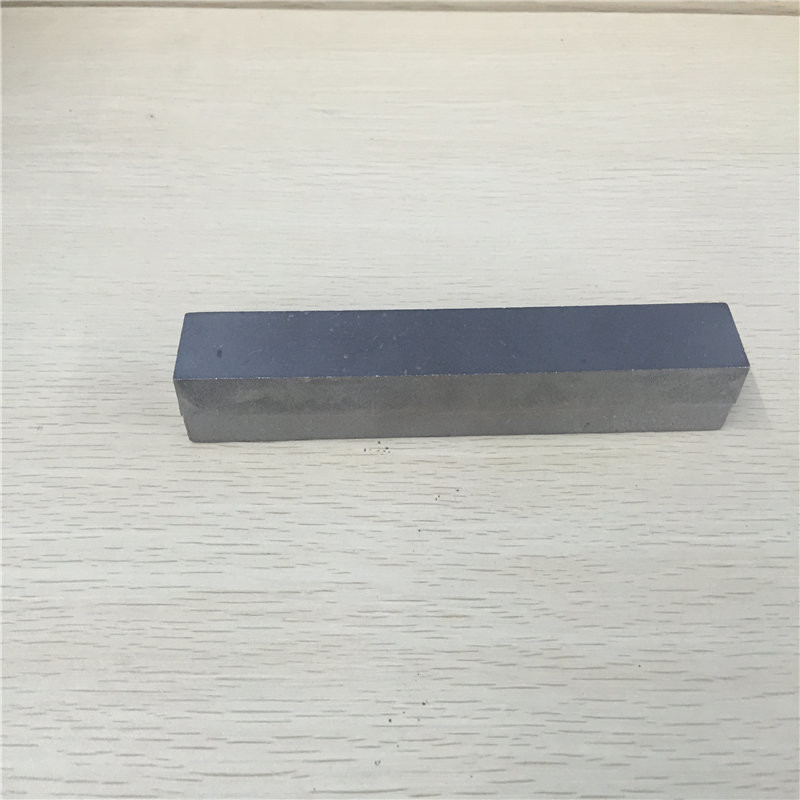

Unit Weight 0.9kgs 102x33x33mm Wear Blocks For Mining / Quarrying
Product Description |
Wear products Wear bars and blocks
Wear bars are commonly used in buckets in industries like mining and quarrying. They come in various lengths, grades and sizes and can be customized to your specific requirements. They are harder, tougher and more weldable than any other wear bars.
Advantages
Product Dimensions
Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
A | B | C | D | E | ||||
VLB100 | STD | 200x25x25 | 200 | 25 | 15 | 10 | 25 | 1.0 |
VLB150 | STD | 300x25x25 | 300 | 25 | 15 | 10 | 25 | 1.5 |
VLB110 | STD | 195x25x30 | 195 | 25 | 20 | 10 | 30 | 1.1 |
VLB420 | STD | 459x38x31 | 459 | 38 | 25 | 6 | 31 | 4.2 |
VLB153 | STD | 153x38x33 | 153 | 38 | 25 | 8 | 33 | 1.5 |
VLB300 | STD | 300x38x33 | 300 | 38 | 25 | 8 | 33 | 3.0 |
VLB090 | STD | 102x33x33 | 102 | 33 | 25 | 8 | 33 | 0.9 |
VLB220 | STD | 190x50x30 | 190 | 50 | 20 | 10 | 30 | 2.2 |
VLB290 | STD | 150x50x50 | 150 | 50 | 40 | 10 | 50 | 2.9 |
VLB410 | STD | 210x50x50 | 210 | 50 | 38 | 12 | 50 | 4.1 |
VLB450 | STD | 230x50x50 | 230 | 50 | 38 | 12 | 50 | 4.5 |
VLB500 | STD | 254x50x50 | 254 | 50 | 40 | 10 | 50 | 5.0 |
VLB580 | STD | 294x50x50 | 294 | 50 | 40 | 10 | 50 | 5.7 |
VLB850 | STD | 432x50x50 | 432 | 50 | 38 | 12 | 50 | 8.5 |
VLB1180 | STD | 600x50x50 | 600 | 50 | 38 | 12 | 50 | 11.8 |
VLB540 | STD | 230x50x60 | 230 | 50 | 40 | 20 | 60 | 5.4 |
VLB160 | STD | 203x51x20 | 203 | 51 | 12 | 8 | 20 | 1.6 |
VLB200 | STD | 254x51x20 | 254 | 51 | 12 | 8 | 20 | 2.0 |
VLB244 | STD | 127x51x48 | 127 | 51 | 38 | 10 | 48 | 2.4 |
VLB240 | STD | 250x60x20 | 250 | 60 | 12 | 8 | 20 | 2.4 |
VLB340 | STD | 150x75x39 | 150 | 75 | 29 | 10 | 39 | 3.4 |
VLB440 | STD | 150x75x50 | 150 | 75 | 40 | 10 | 50 | 4.4 |
VLB530 | STD | 150x75x60 | 150 | 75 | 50 | 10 | 60 | 5.3 |
VLB890 | STD | 200x75x75 | 200 | 75 | 63 | 12 | 75 | 8.8 |
VLB610 | STD | 194x80x50 | 194 | 80 | 38 | 12 | 50 | 6.1 |
VLB920 | STD | 294x80x50 | 294 | 80 | 38 | 12 | 50 | 9.2 |
VLB1100 | STD | 241x100x58 | 241 | 100 | 38 | 20 | 58 | 11 |
VLB2110 | STD | 300x150x60 | 300 | 150 | 48 | 12 | 60 | 21 |
Product Drawing
Product Categories |
1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
Team & Exhibition |
Product Application |
Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
FAQ |
Q: Are you a trade company or a manufacturer ? |
A: We are ISO9001:2008 Certificated factory. |
Q: Can you provide samples ? is it free or extra ? |
A: Yes, we can provide free samples for customer’s testing. |
Q: Can I have my logo in your product ? |
A: Yes, OEM and ODM are available for us. |
Q: Can I have a visit to your factory before the order ? |
A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available. |
