Changsha Vibo Wearable Material Co., Ltd.
| Place of Origin: | changsha |
|---|---|
| Brand Name: | VIBO |
| Certification: | ASTM |
| Minimum Order Quantity: | 200KG |
| Packaging Details: | Polywood crates, polywood pallets, anti-rust film |
| Delivery Time: | 4 week |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons per month |
| Material: | Chromium | Color: | Customized |
|---|---|---|---|
| Impact Toughness: | Up To 150J/cm2 | Hardness: | 63HRC |
| Type: | Grizzly Bars | Shearing Strength: | 210Mpa Min |
| Processing Type: | Casting | Machine Type: | Mining, Quarry, Sinter Process Plants |
| Highlight: | 305*141*131mm Grizzly Bars,305*150*141mm Grizzly Bars,305*62.5*50mm Grizzly Bars |
||

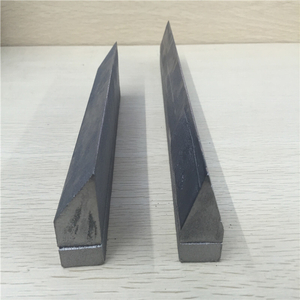

Impact Resistant 15/3 CrMo Laminated Grizzly Bars For Screening
| Product Description |
Grizzly Bars are exceptionally resistant to impact and abrasion. They combine the very high wear resistant qualities of a high chrome cast iron with the weldable and high impact toughness of mild steel. The peaked profile improves efficiency, ensuring all material passes over the screen slits.
Used in the crushing and screening industry.
They are used as a screen to help separate rocks by size. Grouser bar works perfectly for this because of its shape. The configuration of the grouser reduces pinching and clogging.
Product Dimensions
| Part No | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | |||
| VGB10 | 305*150*137.5 | 305 | 150 | 137.5 | 38 | 12 | 13.5 |
| VGB11 | 305*137.5*125 | 305 | 137.5 | 125 | 38 | 12 | 12.5 |
| VGB12 | 305*125*112.5 | 305 | 125 | 112.5 | 38 | 12 | 11.2 |
| VGB13 | 305*112.5*100 | 305 | 112.5 | 100 | 38 | 12 | 10 |
| VGB14 | 305*100*87.5 | 305 | 100 | 87.5 | 38 | 12 | 8.8 |
| VGB15 | 305*87.5*75 | 305 | 87.5 | 75 | 38 | 12 | 7.5 |
| VGB16 | 305*75*62.5 | 305 | 75 | 62.5 | 38 | 12 | 6.3 |
| VGB17 | 305*62.5*50 | 305 | 62.5 | 50 | 38 | 12 | 5.1 |
| VGB18 | 305*150*141 | 305 | 150 | 141 | 38 | 12 | 13.8 |
| VGB19 | 305*141*131 | 305 | 141 | 131 | 38 | 12 | 12.9 |
| VGB20 | 305*131*122 | 305 | 131 | 122 | 38 | 12 | 11.9 |
| VGB21 | 305*122*113 | 305 | 122 | 113 | 38 | 12 | 11.1 |
| VGB22 | 305*113*103 | 305 | 113 | 103 | 38 | 12 | 10.1 |
| VGB23 | 305*103*94 | 305 | 103 | 94 | 38 | 12 | 9.2 |
| VGB24 | 305*94*84 | 305 | 94 | 84 | 38 | 12 | 8.3 |
| VGB25 | 305*84*75 | 305 | 84 | 75 | 38 | 12 | 7.4 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO is a professional manufacturer of vacuum-brazing bimetallic composite,white iron casting with ceramic-inserted,wear parts with Tungsten carbide,casting bonding bi-metal,Ni-hard casting Tungsten carbide/ceramic inserted casting,tungsten carbide Vacuum-brazing wear parts with annual turnover of more than thirty million US dollar. VIBO factory covers 53000 square meters land,Owns a state-of-the-art production line with annual capacity of more than 10000 tons wear parts.VIBO customers are from global mining,oil sands,steel,cement,power,crushing,aggregate,recycling,dredging and sugar industry.VIBO products are widely distributed to North/South America,Europe,Australia,Southeast Asia.Our wear parts provide high wear-resistant quality ,as well as resistant-impact/erosion/corrosion/friction/abrasion and high temperature function.We are ready at your service.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
|
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION)
|
|
|
|
|
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request.
|
|
